Plate cam with knife-edge follower (simple harmonic rise)
How does a plate cam with a knife-edge follower work? · Hardware · basis: Xem Studio design following Brown No. 136 (1868)
Also called: knife-edge follower cam, cam and follower, harmonic cam profile, leva de disco con seguidor de filo, Kurvenscheibe mit Schneidenstößel
Exact dimensions. True size, with no tolerance added.
- sizes
- 5 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: base circle; stays the same: rise, law, pose.
- Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- A disc cam turning on its shaft lifts a knife-edge follower that slides in a straight guide: the profile is drawn from the displacement law — here simple harmonic rise of 12 mm over 120°, dwell, return, dwell.
- Knife-edge: simplest, exact on any convex profile, but high wear; it is the follower of Brown's cam wheel (No. 136).
- Drawn at 60° of cam rotation (mid-rise, lift 6 mm) with the follower touching the profile; follower guide 30 × 16 block. Brown's No. 136.

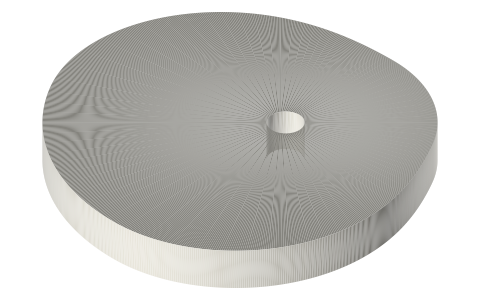

- Parts (each has its own page): plate-cam-harmonic-knife-r20-h12, knife-edge-follower-8, follower-guide-block-8.
- Brown's movement No. 136 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Plate cam with knife-edge follower size chart
| parameter | value |
|---|---|
| base circle | R20 |
| rise | 12 mm / 120° |
| law | simple harmonic |
| follower | knife-edge |
| pose | 60°, lift 6 mm |
