Print-in-place: ratchet with flexible pawls (12 teeth, one-way)
How do you 3D print a working ratchet (one-way clutch) in one piece? · Hardware · basis: Xem Studio design: internal ratchet teeth, compliant pawl arms, 45° V-groove bearing; one designed running gap of 0.40 mm
Also called: print in place ratchet, 3d printed ratchet mechanism, one way clutch print in place, ratchet and pawl stl, compliant ratchet

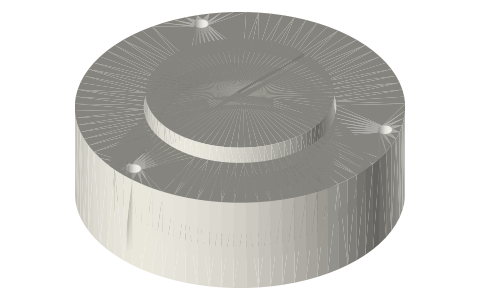

Exact dimensions. True size, with no tolerance added.
- length
- 76.0 mm
- width
- 76.0 mm
- height
- 28.0 mm
Notes
- 3D print in place — prints already assembled, moving, in one job. Drawn at true size with no printer tolerance added; the 0.40 mm running gaps are part of the design.
- Running gap 0.40 mm per side, 0.80 mm on diameter — part of the design, drawn as is. On the 45° faces the same 0.40 mm is measured square to the face (0.57 mm along the axis).
- Bed: flat. The frame ring and the wheel both stand on the bed; in the bottom 6 mm layer the frame carries 12 internal ratchet teeth and the wheel two thin arms whose tips sit in tooth spaces, 0.40 mm clear.
- Support while printing: above the teeth the frame closes inward as a 45° cone over the arms (0.40 mm square to the arm tips' top corners) and then wraps the wheel's raised boss with a 45° V-ridge in a V-groove; the boss and knob are plain cylinders. Nothing overhangs more than 45°.
- Captured: the V-ridge in the boss's V-groove holds the wheel up and down; the boss runs in the ridge with 0.40 mm all round.
- Freeing it: hold the frame and turn the knob in the free direction one full turn (12 clicks); flex each arm once with a fingertip through the top if it feels stuck.
- Motion: free direction — continuous, the arm tips ride up the 3 mm ramps (bending 3.1 mm inward) and drop off each locking face: 12 clicks per turn. Locking direction — it turns 0.77° until a pawl tip meets a tooth face, then stops (computed).
Print-in-place: ratchet with flexible pawls size chart
| key | value | what |
|---|---|---|
| gap_mm | 0.4 | running gap per side on every moving interface (radial, axial, under captured parts) — part of the design, not a tolerance |
| frame_od_mm | 76.0 | |
| teeth | 12 | internal ratchet teeth (radial locking face, straight ramp) |
| tooth_depth_mm | 3.0 | root Ø60, tip Ø54 |
| pawls | 2 | flexible arms on the wheel, 180° apart (both engage) |
| pawl_arm_mm | 1.6 wide × 100° of arc | on Ø51.5 |
| pawl_flex_mm | 3.06 | arm-tip travel inward to pass a tooth |
| lock_play_deg | 0.77 | free turn in the locking direction before a pawl meets a tooth face |
| clicks_per_turn | 12 | free direction |
| knob_d_mm | 43.48 | wheel boss / knob |
| axial_play_mm | 0.57 | |
| height_mm | 28.03 | as printed |
| mount_holes | 3 × Ø3.4 | frame |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Print-in-place mechanism design (geometry computed in the generator) | web | Xem Studio design |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| print-in-place-ratchet-flexible-pawl-assembly | The whole print as laid on the bed (2 bodies, already assembled); STEP keeps each moving body a separate solid | STEP · STL |
| print-in-place-ratchet-flexible-pawl-frame | Frame ring Ø76 with 12 internal teeth, 45° cone and V-ridge bearing, 3 × Ø3.4 | STEP · STL |
| print-in-place-ratchet-flexible-pawl-wheel | Wheel with two flexible pawl arms, boss with 45° V-groove, knob with pointer slot | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=print-in-place-ratchet-flexible-pawl

Fits with







Questions
Which part flexes?
The two pawls are thin arms (1.6 mm wide, 100° of arc) cut into the wheel; a 3.2 mm slot behind each lets it bend inward over the teeth.
How much backlash does it have?
0.77° in the locking direction — the 0.40 mm gap between pawl tip and tooth face, seen from the axis.
