R&G tapered carbon tube 10 → 5 mm × 880 mm

What are the dimensions of the R&G tapered carbon tube 10 → 5 mm × 880 mm? · Modern device · basis: Manufacturer specifications (R&G Faserverbundwerkstoffe)

Also called: tapered carbon tube 10mm, carbon tail boom 880mm, r&g conical carbon tube, 77100503-088, tapered tail boom glider, konisches carbonrohr 10mm, tubo carbono cónico, 10 x 5 tapered tube

Exact dimensions. True size, with no tolerance added.

length
10 mm
width
10 mm
height
880 mm

Notes

  • From R&G Faserverbundwerkstoffe's product page. Typical use: tail booms.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

R&G tapered carbon tube 10 → 5 mm × 880 mm size chart

dimensionvalue
Outer diameter5–10 mm (tapered)
Wall0.3 mm
Length880 mm
Weightapprox. 13 g
Item no.77100503-088
Diameter tolerance±0.2 mm
Straightnessmax. 2 mm/m
Lay-up3k plain weave, 0°/90° wound

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

R&G FaserverbundwerkstoffeCarbon fibre tubes wound 0°/90° (tapered/conical)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
r-g-tapered-carbon-tube-10x5x880-tubeTapered tube OD 10 → 5 mm over 880 mm, 0.3 mm wallSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=r-g-tapered-carbon-tube-10x5x880

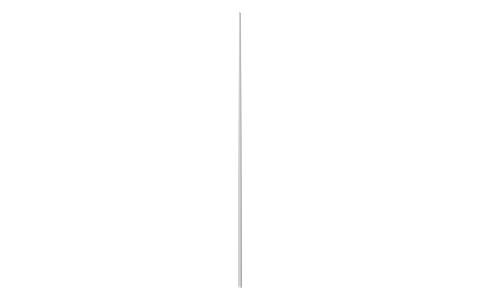

R&G tapered carbon tube 10 → 5 mm × 880 mm, isometric render of a generated part
