R&G tapered carbon tube 25 → 10 mm × 1000 mm

What are the dimensions of the R&G tapered carbon tube 25 → 10 mm × 1000 mm? · Modern device · basis: Manufacturer specifications (R&G Faserverbundwerkstoffe)

Also called: tapered carbon tube 25mm, carbon tail boom 1000mm, r&g conical tube 25mm, 77251005-100, glider tail boom tube, konisches carbonrohr 25mm, tubo carbono cónico 25mm, 25 x 10 tapered tube

Exact dimensions. True size, with no tolerance added.

length
25 mm
width
25 mm
height
1000 mm

Notes

  • From R&G Faserverbundwerkstoffe's product page. Typical use: tail booms.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

R&G tapered carbon tube 25 → 10 mm × 1000 mm size chart

dimensionvalue
Outer diameter10–25 mm (tapered)
Wall0.5 mm
Length1000 mm
Weightapprox. 39 g
Item no.77251005-100
Diameter tolerance±0.2 mm
Straightnessmax. 2 mm/m
Lay-up3k plain weave, 0°/90° wound

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

R&G FaserverbundwerkstoffeCarbon fibre tubes wound 0°/90° (tapered/conical)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
r-g-tapered-carbon-tube-25x10x1000-tubeTapered tube OD 25 → 10 mm over 1000 mm, 0.5 mm wallSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=r-g-tapered-carbon-tube-25x10x1000

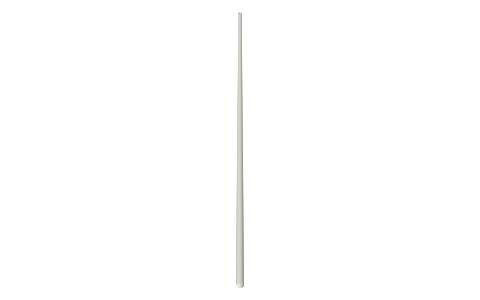

R&G tapered carbon tube 25 → 10 mm × 1000 mm, isometric render of a generated part
