Rolling parallel ruler blade 200 × 24 × 6 with lugs for a Ø3 axle

What is a rolling parallel ruler blade? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: rolling ruler blade, parallel ruler blade, regla paralela de rodillos, Rollparallellineal

Exact dimensions. True size, with no tolerance added.

length
200.0 mm
width
24.0 mm
height
13.0 mm

Notes

  • 200 × 24 × 6 straight-edge with four lugs holding a Ø3 axle 8 mm above its underside and two 5 × 20 openings at x = ±60 (5 along the blade) through which the Ø18 rollers reach 1 mm below the blade; the rollers' rims do the guiding, the blade's long edges do the drawing.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Rolling parallel ruler blade 200 × 24 × 6 with lugs for a Ø3 axle size chart

dimensionvalue
blade200 × 24 × 6 mm
axle holesØ3, centre 8 mm above the underside
roller openings2 × 5 × 20 mm at x = ±60
lugs4 × 6 × 10 × 7 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 323: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rolling-ruler-blade-200-d18blade, z 0..6, lugs to z 13, axle along X at z = 8STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rolling-ruler-blade-200-d18

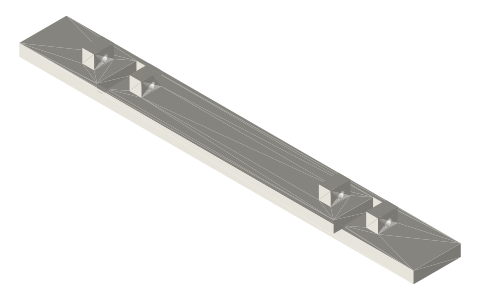

Rolling parallel ruler blade 200 × 24 × 6 with lugs for a Ø3 axle, isometric render of a generated part
Render of rolling-ruler-blade-200-d18 from the free STEP; not to scale.

Fits with

Questions

What is a rolling parallel ruler blade?

200 × 24 × 6 straight-edge with four lugs holding a Ø3 axle 8 mm above its underside and two 5 × 20 openings at x = ±60 (5 along the blade) through which the Ø18 rollers reach 1 mm below the blade; the rollers' rims do the guiding, the blade's long edges do the drawing.
