Rolling parallel ruler (blade on two notched rollers)
How does a rolling parallel ruler stay parallel? · Hardware · basis: Xem Studio design following Brown No. 323 (1868)
Also called: rolling parallel ruler, rolling ruler, roller parallel rule, regla paralela de rodillos, Rollparallellineal
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: blade, rollers, axle, roller spacing.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

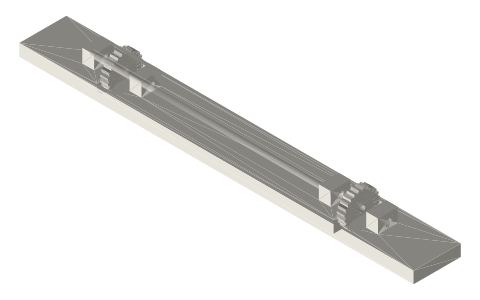

- A straight-edge carries an axle with a roller at each end; the rollers are the same size and fixed to the axle, so as the ruler rolls every point of the blade moves the same distance at right angles to the axle — the blade stays parallel to its starting line.

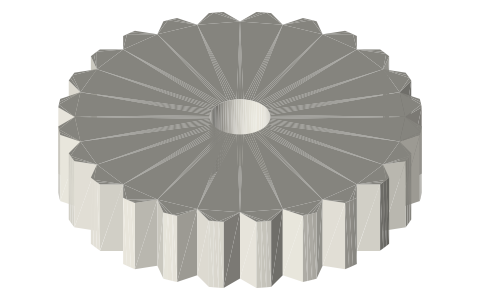

- The notched rims (24 V-notches, 0.85 mm deep) bite the paper so neither roller slips; the rollers stand 1 mm proud of the underside through openings in the blade. Drawn with a Ø3 × 150 axle, Ø18 × 4 rollers at ±60 mm and a 200 mm blade.
- Brown's No. 323 (rolling parallel ruler); the navigator's parallel rule.
- Parts (each has its own page): rolling-ruler-blade-200-d18, notched-roller-d18x4-b3, linear-shafts-h6.
- Brown's movement No. 323 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Rolling parallel ruler size chart
| parameter | value |
|---|---|

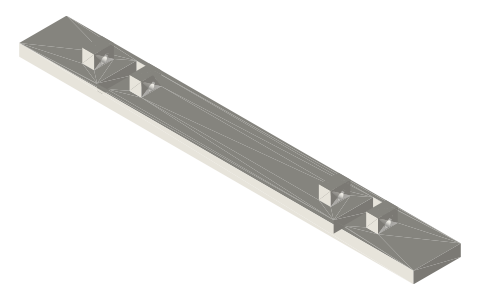

| blade | 200 × 24 × 6 mm |
| rollers | 2 × Ø18 × 4, notched |
| axle | Ø3 × 150 (linear shaft) |
| roller spacing | 120 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 323: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| rolling-parallel-ruler-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=rolling-parallel-ruler-mechanism

Fits with
Questions
How does a rolling parallel ruler stay parallel?
A straight-edge carries an axle with a roller at each end; the rollers are the same size and fixed to the axle, so as the ruler rolls every point of the blade moves the same distance at right angles to the axle — the blade stays parallel to its starting line.
Why does a rolling ruler need equal rollers?
Unequal rollers would make the blade swing about the smaller one; equal, fixed rollers make every point travel the same distance.
