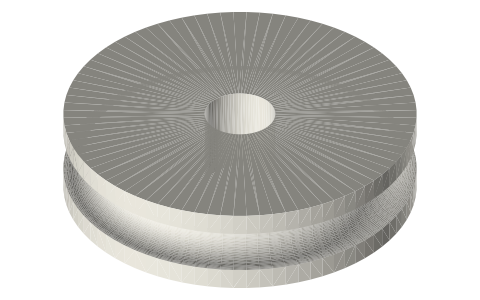

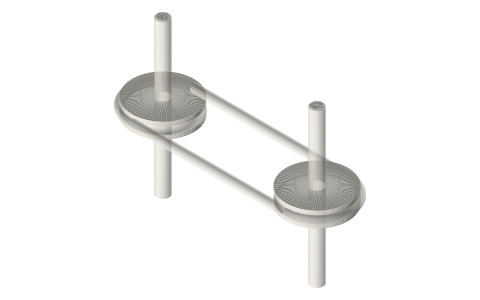

Round-groove pulley Ø40 × 10 for a Ø5 round band, Ø8 bore
What is this grooved pulley? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: grooved pulley, round belt pulley, o-ring belt pulley, poleas de garganta redonda, Rundriemenscheiben
Exact dimensions. True size, with no tolerance added.
- length
- 40.0 mm
- width
- 40.0 mm
- height
- 10.0 mm
Notes
- Ø40 × 10 pulley with a semicircular R2.5 groove centred on the rim: a Ø5 round band lies in it with its centre on the Ø40 circle, touching the groove over half its section.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Round-groove pulley Ø40 × 10 for a Ø5 round band, Ø8 bore size chart
| dimension | value |
|---|---|
| outside Ø | 40 mm |
| groove | R2.5, centre on the rim |
| band | Ø5 round |
| width | 10 mm |
| bore | Ø8 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 257: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=round-groove-pulley-40-band5-bore8

Fits with
Questions
What is this grooved pulley?
Ø40 × 10 pulley with a semicircular R2.5 groove centred on the rim: a Ø5 round band lies in it with its centre on the Ø40 circle, touching the groove over half its section.
