Round-groove pulleys and round band, 1 : 1

How does a round band sit in a round-groove pulley? · Hardware · basis: Xem Studio design following Brown No. 257 (1868)

Also called: round belt drive, grooved pulley, o-ring belt drive, poleas de garganta redonda con correa redonda, Rundriemenscheiben mit Rundriemen

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pulleys, band, centre distance; stays the same: ratio.
  • Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • The band's section matches the groove, so it is held on half its circumference and cannot ride off; it drives by friction on the groove's surface, like a flat belt but steerable round guide pulleys at any angle.

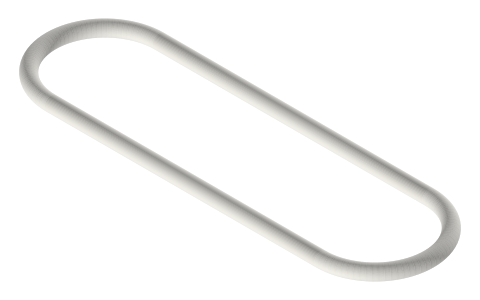

  • Two equal pulleys 100 mm apart on Ø8 shafts and a Ø5 endless band, drawn seated in both grooves (band centre radius 20 mm).
  • Brown's No. 257.
  • Parts (each has its own page): round-groove-pulley-40-band5-bore8, round-band-5-c100-pulleys-40, linear-shafts-h6.
  • Brown's movement No. 257 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Round-groove pulleys and round band, 1 : 1 size chart

parametervalue
pulleys2 × Ø40 × 10 for a Ø5 round band
bandØ5 round
centre distance100 mm
ratio1 : 1
