Sanitary clamp 90° elbow, 6 in (2CMP style)

What is the centre-to-face of a 6 inch tri-clamp 90 elbow? · Standard part · basis: Dixon B2CMP-G600: A 9.88 in centre to face, R 9.00 in, ID 5.78 in on 6.000 in tube; ISO 2852 faces

Also called: 6 inch tri clamp elbow, 6 sanitary 90 elbow, 2cmp 6

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • One 6 in 90° elbow: 9.88 in (251.0 mm) from the crossing of the leg centrelines to each face, on a 9.00 in (228.6 mm) centreline radius.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Sanitary clamp 90° elbow, 6 in size chart

size (in)c to f (mm)radius (mm)tube od (mm)
6251.0228.6152.4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
clamp face6 in 166.9 / 156.5 / 152.4 × 2.77mating ISO 2852 clamp face, Type B gasket in the groove, two clamp halves (flange C3 / groove C2 / tube OD × wall, mm)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Dixon (via Hose Warehouse)B2CMP-G600 6 in 90° clamp elbow: A 9.88 in, R 9.00 in, ID 5.78 inweblisting; dimensions cited
GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
elbow-90-6in6 in 90° clamp × clamp elbow: 9.88 in centre to face, R 9.00 inSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-elbow-90-6in

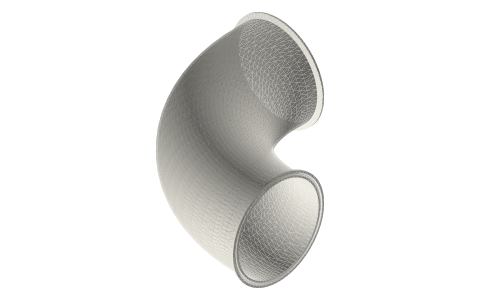

Sanitary clamp 90° elbow, 6 in (2CMP style), isometric render of a generated part
Render of elbow-90-6in from the free STEP; not to scale.

Fits with

Questions

What is the centre to face of a 6 in clamp 90?

9.88 in (251.0 mm), radius 9.00 in.
