Sanitary clamp weld ferrules, 6 and 8 in (tri-clamp style)

What are the dimensions of a 6 inch tri-clamp ferrule? · Standard part · basis: Tube OD, wall and flange OD per GW Kent and Rubber Fab (6 in 6.570 in flange, 8 in 8.570 in); gasket groove on the Rubber Fab bead diameter; ISO 2852 face profile

Also called: 6 inch tri clamp ferrule, 8 inch tri clamp ferrule, 6 tri clamp flange diameter, 6.57 tri clamp, tri clamp ferrule stl 6 inch

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • 6 and 8 in weld ferrules drawn 0.5 in and 1.5 in long (makers list several lengths; 1.5 in matches the L14AM7 length on 10 and 12 in).

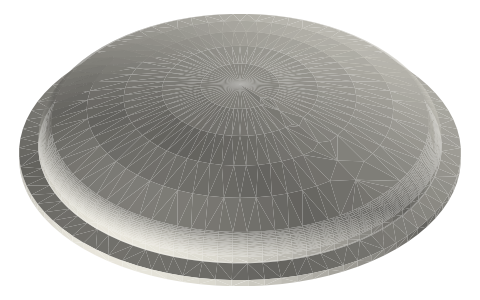

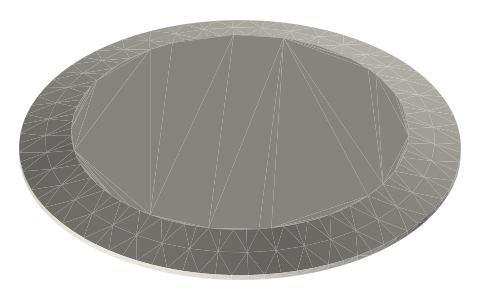

  • The 6 in ferrule is the top of a 6 in brew vessel or a 6 in spool: one 6 in clamp and gasket closes it with a cap or a dome lid.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Sanitary clamp weld ferrules, 6 and 8 in size chart

size (in)tube od (mm)wall (mm)bore (mm)flange od (mm)groove (mm)short (mm)long (mm)
6152.42.77146.86166.88156.512.738.1
8203.22.77197.66217.68207.012.738.1

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles

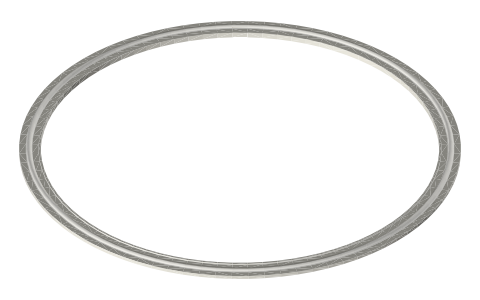

clamp face6 in 166.9 / 156.5 / 152.4 × 2.77; 8 in 217.7 / 207.0 / 203.2 × 2.77mating ISO 2852 clamp face, Type B gasket in the groove, two clamp halves (flange C3 / groove C2 / tube OD × wall, mm)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-clamp dimensions chart (ID, OD, bead per clamp size, ½ to 12 in and DIN 32676)PDFpublisher's chart; dimensions cited, nothing copied
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 4 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ferrule-6in-12.7mm6 in weld ferrule, 0.5 in long: tube Ø152.4 × 2.77 (bore Ø146.86), flange Ø166.9STEP · STL
ferrule-6in-38.1mm6 in weld ferrule, 1.5 in long: tube Ø152.4 × 2.77 (bore Ø146.86), flange Ø166.9STEP · STL
ferrule-8in-12.7mm8 in weld ferrule, 0.5 in long: tube Ø203.2 × 2.77 (bore Ø197.66), flange Ø217.7STEP · STL
ferrule-8in-38.1mm8 in weld ferrule, 1.5 in long: tube Ø203.2 × 2.77 (bore Ø197.66), flange Ø217.7STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-ferrules-6-8in

Sanitary clamp weld ferrules, 6 and 8 in (tri-clamp style), isometric render of a generated part
Render of ferrule-8in-12.7mm from the free STEP; not to scale.

Fits with

Questions

What is the flange diameter of a 6 in tri-clamp?

6.570 in (166.9 mm); the tube is 6.000 in OD with a 0.109 in wall.

And 8 in?

8.570 in (217.7 mm) flange on an 8.000 in tube, 0.109 in wall.
