Screw-jack body with Tr16×4 internal thread, Ø60 base, 50 high

What is the body of a screw jack? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: jack body, screw jack nut body, cuerpo de gato de tornillo, Wagenheberkörper (Spindelmutter)

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
60.0 mm
width
60.0 mm
height
50.0 mm

Notes

  • Ø60 × 8 base, tapered column (Ø28 → Ø22) and Ø22 × 10 top, 50 mm high in all, with a Tr16×4 internal thread through its length (the exact complement of the screw's basic profile).
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Screw-jack body with Tr16×4 internal thread, Ø60 base, 50 high size chart

dimensionvalue
baseØ60 × 8 mm
height50 mm
threadTr16×4 internal, 50 mm engaged

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
internal threadTr16×4, 50 mm engaged (exact complement of the screw)screw-jack-screw-tr16x4runscrew-jack-body*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 389: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
screw-jack-body-tr16x4body, axis Z, z 0..50STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=screw-jack-body-tr16x4

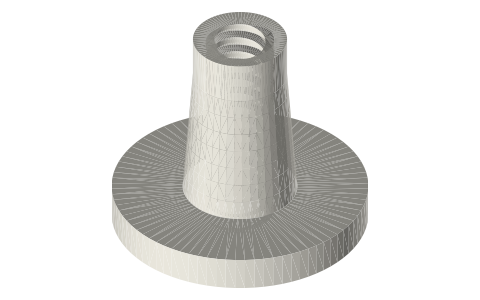

Screw-jack body with Tr16×4 internal thread, Ø60 base, 50 high, isometric render of a generated part
Render of screw-jack-body-tr16x4 from the free STEP; not to scale.

Fits with

Questions

What is the body of a screw jack?

Ø60 × 8 base, tapered column (Ø28 → Ø22) and Ø22 × 10 top, 50 mm high in all, with a Tr16×4 internal thread through its length (the exact complement of the screw's basic profile).
