Screw jack, Tr16×4 (4 mm lift per turn)

How much force does a screw jack give? · Hardware · basis: Xem Studio design following Brown No. 389 (1868)

Also called: screw jack, jack screw, lifting jack, bottle jack screw, gato de tornillo, Schraubenwinde (Spindelheber)

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: lift per turn, lever radius; stays the same: ideal gain; step to the nearest standard size (and redraw the hole or pocket it fits): thread.
  • Resize: Travel per turn = thread lead, a standard size: scale the frame and pick a standard thread; a coarser lead moves farther per turn with less force gain.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Turning the screw in its threaded body lifts it one pitch per turn (4 mm). Ideal force gain = 2π × lever radius / pitch: 2π × 40 / 4 ≈ 63 with the 80 mm tommy bar; friction in the 30° thread takes about two-thirds of that and keeps the load from running back.
  • Basic-profile Tr16×4 trapezoidal thread on screw and body, drawn engaged with no allowance.
  • Brown's No. 389 (lifting jack).

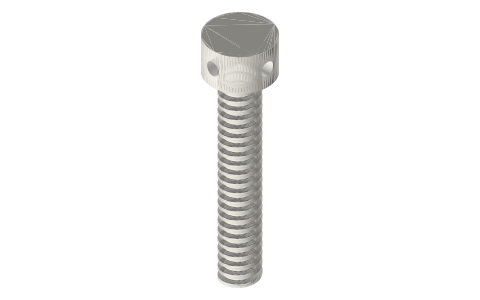

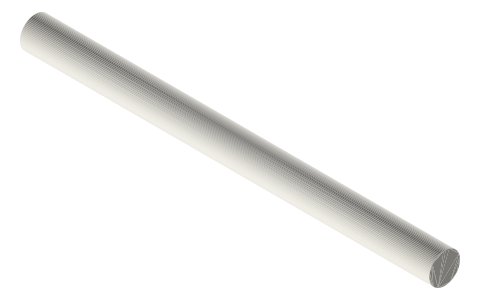

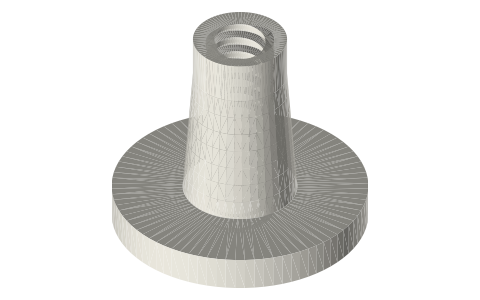

  • Parts (each has its own page): screw-jack-screw-tr16x4, screw-jack-body-tr16x4, tommy-bar-6x80.
  • Brown's movement No. 389 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Screw jack, Tr16×4 size chart

parametervalue
threadTr16×4
lift per turn4 mm
lever radius40 mm
ideal gain≈ 63

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 389: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
screw-jack-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=screw-jack-mechanism

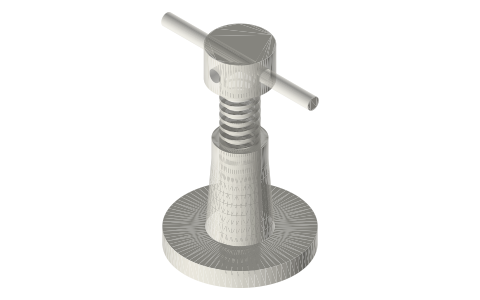

Screw jack, Tr16×4 (4 mm lift per turn), isometric render of a generated part
