Plain sleeve bushings Ø3 to Ø10 ID
What sizes are plain sleeve bushings (ID × OD × length)? · Hardware · basis: Standard metric plain-bushing sizes, ID × OD × length, drawn at exact ID and OD
Also called: sleeve bushing sizes, plain bushing 5mm, bushing 8x12, sleeve bearing dimensions, bushing 3x5
Long Earth Society build part. Flywheel shaft blocks and displacer guides on the LES engines. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 8 in table
Notes

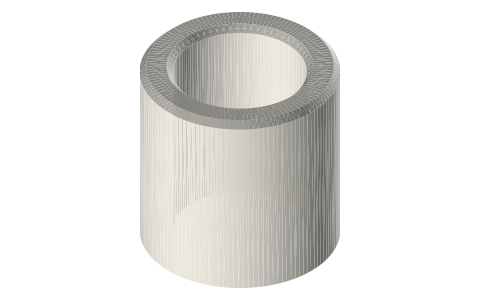

- Plain cylindrical sleeves with a 0.4 chamfer on one end: 3 × 5 × 6, 4 × 6 × 8, 5 × 8 × 8, 5 × 8 × 12, 6 × 10 × 10, 8 × 12 × 12, 8 × 12 × 20, 10 × 14 × 15.
- The OD sits in a housing hole of the same Ø and a shaft of the ID turns or slides inside; both fits are listed under Mating features.
- Wall thickness is 1 mm on the Ø3 and Ø4, 1.5 on the Ø5, 2 on the Ø6, Ø8 and Ø10.
Plain sleeve bushings Ø3 to Ø10 ID size chart
| file | ID | OD | length |
|---|---|---|---|
| bushing-3x5x6 | 3 | 5 | 6 |
| bushing-4x6x8 | 4 | 6 | 8 |
| bushing-5x8x8 | 5 | 8 | 8 |
| bushing-5x8x12 | 5 | 8 | 12 |
| bushing-6x10x10 | 6 | 10 | 10 |
| bushing-8x12x12 | 8 | 12 | 12 |
| bushing-8x12x20 | 8 | 12 | 20 |
| bushing-10x14x15 | 10 | 14 | 15 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| bushing OD | Ø5–Ø14 | housing hole of the same Ø | press | bushing-* |
| bushing ID | Ø3–Ø10 | shaft of the same Ø | run | bushing-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| McMaster-Carr | Mounted bearings (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| McMaster-Carr | Sleeve bearings (free STEP per part, for your own design use; no redistribution) | STEP, PDF | McMaster-Carr site terms verify |
| OpenBuilds | Solid V wheel kit | web, STEP | OpenBuilds site verify |
| Wikipedia | Plain bearing | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine and rig builds | web, video | LES site |
Free files
★ Free files 8 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| bushing-3x5x6 | plain sleeve bushing 3 ID × 5 OD × 6 | STEP · STL |
| bushing-4x6x8 | plain sleeve bushing 4 ID × 6 OD × 8 | STEP · STL |
| bushing-5x8x8 | plain sleeve bushing 5 ID × 8 OD × 8 | STEP · STL |
| bushing-5x8x12 | plain sleeve bushing 5 ID × 8 OD × 12 | STEP · STL |
| bushing-6x10x10 | plain sleeve bushing 6 ID × 10 OD × 10 | STEP · STL |
| bushing-8x12x12 | plain sleeve bushing 8 ID × 12 OD × 12 | STEP · STL |
| bushing-8x12x20 | plain sleeve bushing 8 ID × 12 OD × 20 | STEP · STL |
| bushing-10x14x15 | plain sleeve bushing 10 ID × 14 OD × 15 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=sleeve-bushings

How it fits
Goes in or on
Connects to
Alternatives
You might also need
Questions
What bushing size for a 5 mm shaft?
Ø5 ID × Ø8 OD, 8 or 12 long; it sits in a Ø8 hole.
What bushing size for an 8 mm shaft?
Ø8 ID × Ø12 OD, 12 or 20 long, in a Ø12 hole.
