Slider-crank mechanism (crank and connecting rod)

How does a slider-crank turn rotation into straight-line motion? · Hardware · basis: Xem Studio drawing; classic mechanism (Brown No. 92)

Also called: slider crank, crank and slider, crank connecting rod mechanism, slider crank 3d print, mecanismo biela manivela, Schubkurbel, système bielle manivelle

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: crank radius r, rod length L, stroke; step to the nearest standard size (and redraw the hole or pocket it fits): pins, shaft.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A crank of radius r drives a connecting rod of length L whose other end slides on a line through the crank centre. Stroke = 2r (40 mm here).
  • Slider position x = r·cosθ + √(L² − r²·sin²θ); the rod ratio L/r (4 here) sets how far the motion departs from simple harmonic.
  • It is the piston-engine and pump layout; running backwards (slider drives) it needs a flywheel to pass the dead centres.
  • Parts (each has its own page): crank-discs-5mm-bore, connecting-rods-623, crosshead-8mm, crosshead-guide-8mm, pins-3mm. Brown's movement No. 92 shows it (1868).

Slider-crank mechanism size chart

parametervalue
crank radius r20 mm
rod length L80 mm
stroke40 mm
pinsØ3
shaftØ5

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
slider-crank-mechanism-assemblyAssembled mechanism, all parts placed (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=slider-crank-mechanism

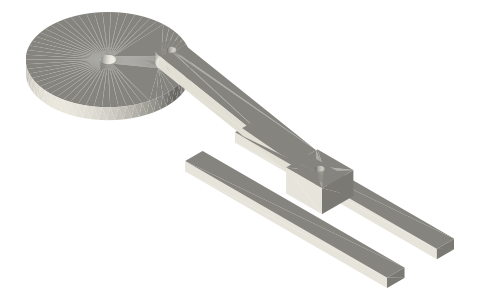

Slider-crank mechanism (crank and connecting rod), isometric render of a generated part
