Follower guide 20 × 20 × 10 with an 8 × 8 square hole

What keeps the swash follower straight? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: follower guide, guía del seguidor, Stößelführung

Exact dimensions. True size, with no tolerance added.

length
20.0 mm
width
20.0 mm
height
10.0 mm

Notes

  • Block with an 8 × 8 square hole parallel to the shaft: the follower slides in it and cannot turn.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Follower guide 20 × 20 × 10 with an 8 × 8 square hole size chart

dimensionvalue
block20 × 20 × 10
hole8 × 8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 95: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
swash-follower-guide-sq8as drawn in the mechanism's own frameSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=swash-follower-guide-sq8

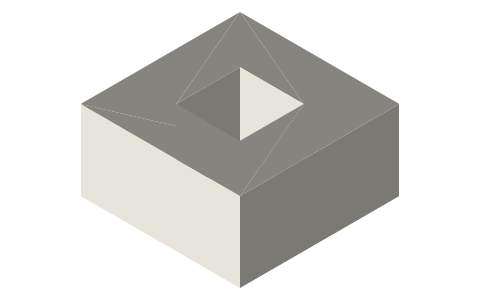

Follower guide 20 × 20 × 10 with an 8 × 8 square hole, isometric render of a generated part
Render of swash-follower-guide-sq8 from the free STEP; not to scale.

Fits with

Questions

What keeps the swash follower straight?

Block with an 8 × 8 square hole parallel to the shaft: the follower slides in it and cannot turn.
