Tea-light stands: a Ø38 cup pocket on a column

What stand holds a tea light at a set height? · Hardware · basis: Tea light cup Ø38 × 16 from the tea-light-candles entry; heights from the assembled alpha V-twin and Ross yoke alpha engines on this site (cup top 15 mm below the hot barrel)

Also called: tea light holder, tea light stand stl, candle holder stirling engine, tea light riser

Long Earth Society build part. Holds the tea light where each engine needs its heat. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • A Ø30 column on a 50 × 60 × 5 base carries a Ø44 head with a Ø38 × 8 pocket that takes the tea light's cup. The column stands 15 mm from one end of the base, so the base reaches away from the engine and clears its foot.
  • H97: the alpha V-twin syringe engine, cup centred under the hot (+45°) barrel 5 mm in from its tip end, cup top 15 mm below the barrel. h185: the Ross yoke alpha, cup beside the hot barrel (axes 36 mm apart), cup top 15 mm below the barrel's tip end.
  • The pocket is drawn at the cup's diameter exactly (see Mating features).

Tea-light stands: a Ø38 cup pocket on a column size chart

standheight (mm)cup floor (mm)for
tea-light-stand-h979789alpha V-twin syringe
tea-light-stand-h185185177Ross yoke alpha

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
cup pocketØ38 × 8tea light cup Ø38sockettea-light-stand-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tea-light-stand-h97tea-light stand 97 tall: Ø38 × 8 cup pocket (floor 89 above the table), Ø44 head, Ø30 column, 50 × 60 × 5 base with the column 15 from one endSTEP · STL
tea-light-stand-h185tea-light stand 185 tall: Ø38 × 8 cup pocket (floor 177 above the table), Ø44 head, Ø30 column, 50 × 60 × 5 base with the column 15 from one endSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tea-light-stand

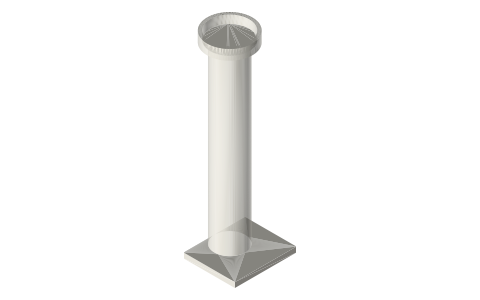

Tea-light stands: a Ø38 cup pocket on a column, isometric render of a generated part
Render of tea-light-stand-h185 from the free STEP; not to scale.

Fits with

Questions

How high should a tea light sit under a Stirling engine?

With the cup top 15–20 mm below the hot surface. The h97 stand does that under the alpha V-twin's hot barrel, the h185 beside the Ross yoke alpha's.

What size pocket holds a tea light?

Ø38 × 8, the cup's own diameter (cups run Ø37.5–39 across makers).
