Tilt-hammer helve 200 mm with a 30 × 27 head, Ø6 pivot

What is a tilt hammer helve? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: tilt hammer, trip hammer helve, mango de martinete, Hammerstiel (Schwanzhammer)

Exact dimensions. True size, with no tolerance added.

length
200.0 mm
width
27.0 mm
height
8.0 mm

Notes

  • 10 mm deep, 8 thick bar pivoted on a Ø6 pin at its tail; the hammer head (30 × 27) at the far end. The cam lifts it 60 mm from the pivot and the head falls on the anvil.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Tilt-hammer helve 200 mm with a 30 × 27 head, Ø6 pivot size chart

dimensionvalue
length200 mm
pivotØ6 at the tail
head30 × 27 × 8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 72: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tilt-hammer-helve-200-headas drawn in the mechanism's own frameSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tilt-hammer-helve-200-head

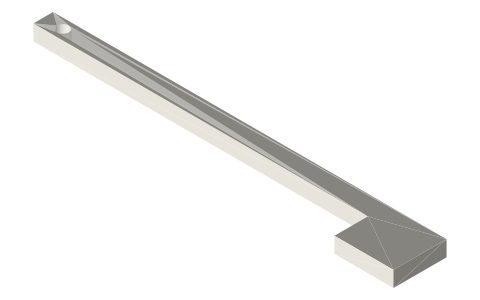

Tilt-hammer helve 200 mm with a 30 × 27 head, Ø6 pivot, isometric render of a generated part
Render of tilt-hammer-helve-200-head from the free STEP; not to scale.

Fits with

Questions

What is a tilt hammer helve?

10 mm deep, 8 thick bar pivoted on a Ø6 pin at its tail; the hammer head (30 × 27) at the far end. The cam lifts it 60 mm from the pivot and the head falls on the anvil.
