Tilt hammer lifted four times per turn by a cam

How does a tilt hammer work? · Hardware · basis: Xem Studio design following Brown No. 72 (1868)

Also called: tilt hammer, trip hammer, helve hammer, cam hammer, martinete de levas, Schwanzhammer

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: helve.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A heavy hammer on a long helve, pivoted at its tail, rests on a cam shaft: each lobe lifts the helve and slips off its tip, so the hammer falls on the anvil under its own weight — four blows per turn with a four-lobe cam.

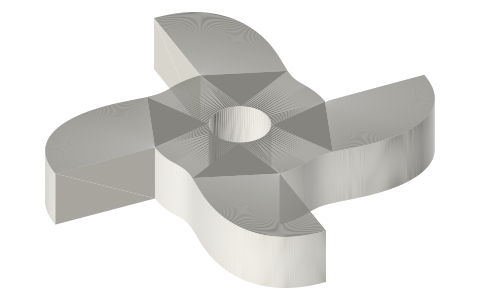

  • Here the helve is pivoted 60 mm from the cam's axis and 20 mm above it; the lobes rise from R12 to R26 over 70° (cycloidal) and drop straight back. Drawn with the cam at 40° and the helve resting on a lobe (helve at 10.81°); the anvil sits 0.5 mm under the head's lowest position, when the helve rests on the cam's R12 base circle (-2.84°).
  • Brown's No. 72 (cam lifting a tilt hammer four times a revolution); No. 353 is the version with the cam acting on the tail.

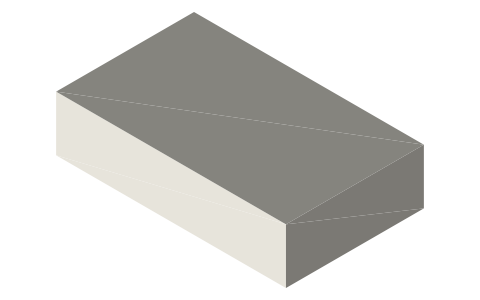

  • Parts (each has its own page): tilt-hammer-cam-4-lobe-r12-r26-bore8, tilt-hammer-helve-200-head, tilt-hammer-anvil-50x30, dowel-pins-metric, linear-shafts-h6.
  • Brown's movement No. 72 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Tilt hammer lifted four times per turn by a cam size chart

parametervalue
cam4 lobes, R12 → R26

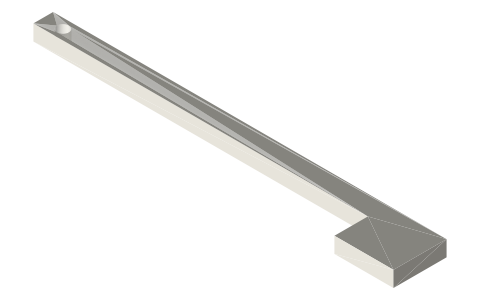

helve200 mm, pivot at tail
blows per turn4

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 72: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tilt-hammer-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tilt-hammer-mechanism

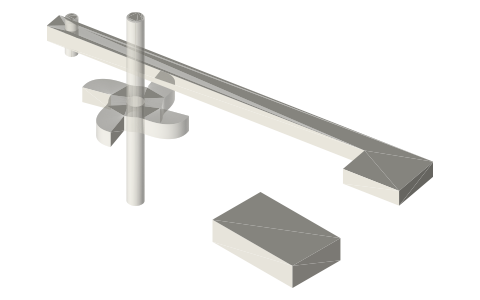

Tilt hammer lifted four times per turn by a cam, isometric render of a generated part
Render of tilt-hammer-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a tilt hammer work?

A heavy hammer on a long helve, pivoted at its tail, rests on a cam shaft: each lobe lifts the helve and slips off its tip, so the hammer falls on the anvil under its own weight — four blows per turn with a four-lobe cam.
