What size is a toothpaste tube? · Standard part · basis: Tube makers' diameter tables; SPI neck-finish tables (via packaging suppliers); maker measurement for the Sonicare base; retailer listing for Listerine 1 L

Also called: toothpaste tube size, toothpaste squeezer, 28-410 dimensions, 24-410 thread size, sonicare charger size, bottle neck finish chart

Exact dimensions. True size, with no tolerance added.

sizes
9 in table

Notes

  • Toothpaste tubes are made in standard diameters: 22, 25, 28, 30, 35, 38, 40, 50 mm (laminate), lengths 75–205 mm. A 75–150 ml tube is usually Ø35–40. Brands do not publish their own tube sizes.
  • Flattened width of a tube = π × D / 2 (Ø35 → 55.0, Ø40 → 62.8 mm), before the crimp margin: geometry, not a maker spec, so the squeezer slots add 3 mm.
  • Neck finishes (pumps, flip caps): '24-410' = 24 mm thread, 1.5 turns: T (thread OD) 23.47–23.88, E (neck OD) 21.34–21.74 mm. '28-410': T 27.13–27.64, E 24.74–25.25 mm.
  • Sonicare round charger base Ø47 mm (maker-measured). Oral-B charger peg and handle diameters, Dove / Irish Spring bar sizes and the Dawn bottle are not published: measured Xem scans planned.
  • Listerine 1 L bottle about 246 × 127 × 73 mm (retailer listing).

Toothpaste tube sizes, bottle neck finishes (24-410, 28-410)… size chart

itemvalue (mm)
tube diameters (laminate)22 / 25 / 28 / 30 / 35 / 38 / 40 / 50
tube length range75–205
flattened width Ø35 / Ø40 tube55.0 / 62.8
24-410 thread OD T23.47–23.88
24-410 neck OD E21.34–21.74
28-410 thread OD T27.13–27.64
28-410 neck OD E24.74–25.25
Sonicare charger base (measured)Ø47
Listerine 1 L bottle246 × 127 × 73

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Alltub (tube maker)Laminate tubes: diameters, lengths, capacities (PDF)webPublisher's page; dimensions are facts
Daiwa Can (tube maker)Plastic tubes: diameters and lengthswebPublisher's page; dimensions are facts
eBottlesGuide for fitting closures (T and E by finish)webPublisher's page; dimensions are facts
Berlin PackagingNeck finish guidewebPublisher's page; dimensions are facts
Printables (maker measurement)Toothbrush charger wall mount: Sonicare base Ø47webPublisher's page; dimensions are facts
OnTime Supplies (retailer listing)Listerine 1 LwebPublisher's page; dimensions are facts

Free files

★ Free files 5 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tube-squeezer-30mm-tubeSqueezer key for a Ø30 tube: slot 50.1 × 3 mm (flattened width π·D/2 = 47.1 + 3)STEP · STL
tube-squeezer-35mm-tubeSqueezer key for a Ø35 tube: slot 58.0 × 3 mm (flattened width π·D/2 = 55.0 + 3)STEP · STL
tube-squeezer-40mm-tubeSqueezer key for a Ø40 tube: slot 65.8 × 3 mm (flattened width π·D/2 = 62.8 + 3)STEP · STL
tube-squeezer-50mm-tubeSqueezer key for a Ø50 tube: slot 81.5 × 3 mm (flattened width π·D/2 = 78.5 + 3)STEP · STL
sonicare-base-pocket-47Wall/shelf pocket for the round Sonicare charger base (Ø47, maker-measured), 8 mm deepSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=toothpaste-and-bathroom

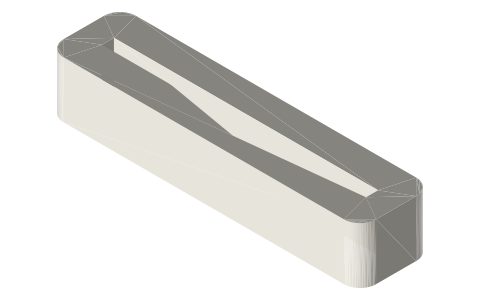

Toothpaste tube sizes, bottle neck finishes (24-410, 28-410), toothbrush charger, mouthwash bottle, isometric render of a generated part
Render of tube-squeezer-40mm-tube from the free STEP; not to scale.

Fits with

Questions

What does 28-410 mean on a bottle?

28 mm thread diameter, 410 style (1.5 turns): thread OD 27.1–27.6 mm, neck OD 24.7–25.3 mm.

How wide is a flattened toothpaste tube?

About π × diameter / 2: a Ø35 tube flattens to about 55 mm.
