Traxxas 2426 26-tooth 48-pitch gear
What size is Traxxas 2426 gear? · Modern device · basis: Maker's parts list (Traxxas)
Also called: Traxxas 2426, traxxas 2426, Traxxas part 2426, 2426 gear, 26-t pinion (48-pitch)/set screw, Traxxas 2426 size, Traxxas 2426 dimensions, Traxxas 2426 replacement, repuesto Traxxas 2426, Traxxas 2426 Ersatzteil
Exact dimensions. True size, with no tolerance added.
- length
- 14.81 mm
- width
- 14.75 mm
- height
- 1.0 mm
Notes
- Traxxas part 2426: Gear, 26-T pinion (48-pitch)/set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.

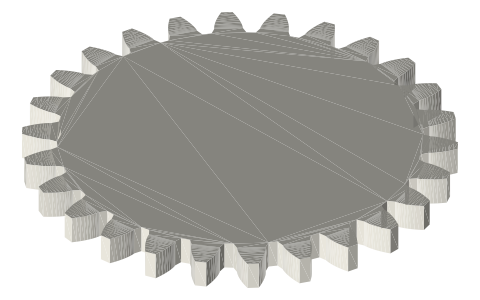

- 26-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø14.82 OD — 1 mm reference (face width not printed).
- True size, no printing tolerance added.
Traxxas 2426 26-tooth 48-pitch gear size chart
| dimension | value |
|---|---|
| part number | Traxxas 2426 |
| name (as printed) | Gear, 26-T pinion (48-pitch)/set screw |
| size (as printed) | 26-T pinion; 48-pitch |
| teeth | 26 |
| pitch | 48 diametral pitch (module 0.5292 mm) |
| pitch diameter | 13.76 mm |
| outside diameter | 14.82 mm (standard addendum) |
| bore | not printed |
| face width | not printed |
| used in | Traxxas Slash 2WD (1/10 short course truck, 58034) |
