3 in end caps with a bored 608 bearing boss: shaft-seal version and blind version with three 1/4 NPT bosses

How do I carry a crankshaft in a sealed tri-clamp crankcase? · Hardware · basis: ISO 2852 3 in face (Ø91 flange, Ø83.5 groove); 608 and ISO 6194-1 8 × 22 × 7 sizes from their standards; 1/4 NPT per ASME B1.20.1

Also called: tri clamp bearing cap, 3 inch end cap with bearing, sealed crankcase tri clamp

Long Earth Society build part. The crankcase caps of my charged beta. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Two 3 in end caps close the run of a 3 in tee (the crankcase) and carry the crankshaft in a 608 each. On the output side an 8 × 22 × 7 rotary shaft seal sits outboard of the bearing against the outer shoulder: the crankcase pressure pushes it onto the shoulder.
  • The blind cap carries the crankcase's three 1/4 NPT ports: fill valve, gauge and relief valve.
  • A plain lip seal is made for a small pressure difference; for a charged crankcase use a type its maker rates above the relief setting.

3 in end caps with a bored 608 bearing boss: shaft-seal version and… size chart

partboreports
bearing-cap-3in-608-sealØ22 to 35: 608 + seal, Ø12 shoulder—
bearing-cap-3in-608-3x-npt14Ø22 to 28: 6083 × 1/4 NPT on r 27

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
faceISO 2852 3 in (Ø91 flange, Ø83.5 groove)Type B gasket, 3 in clampclampall
bearing boreØ22, 608 at z 21–28608 bearing ODpressall
seal boreØ22, z 28–35, outer shoulder Ø128 × 22 × 7 rotary shaft seal ODpressbearing-cap-3in-608-seal*
port bosses3 × 1/4-18 NPT on r 27, tap drill Ø11.1 × 12fill valve, gauge, relief valvedesignedbearing-cap-3in-608-3x*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
ASMEASME B1.20.1 Pipe Threads, General Purpose, Inch (NPT): 1/4-18 major Ø13.72, tap drill 7/16 in (11.1), L2 10.2standardASME; dimensions are facts verify
ISOISO 6194-1 Rotary shaft lip-type seals: nominal dimensions (8 × 22 × 7 is a listed size)standarddimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bearing-cap-3in-608-seal3 in bearing cap: ISO 2852 3 in face, body Ø76.2 to 14, boss Ø36 to 40, Ø22 bore to z 35 (608 at 21–28, 8 × 22 × 7 shaft seal at 28–35), Ø12 through the outer shoulderSTEP · STL
bearing-cap-3in-608-3x-npt143 in bearing cap, blind: Ø22 bore to z 28 (608 at 21–28), three 1/4 NPT bosses on its back on r 27 (fill, gauge, relief)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-bearing-cap-3in

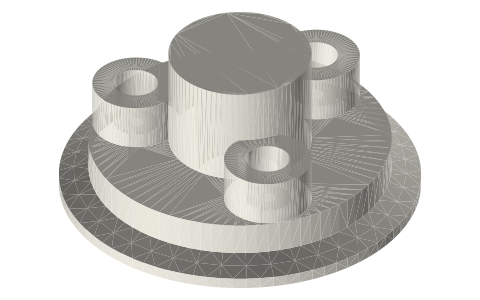

3 in end caps with a bored 608 bearing boss: shaft-seal version and blind version with three 1/4 NPT bosses, isometric render of a generated part
Render of bearing-cap-3in-608-3x-npt14 from the free STEP; not to scale.

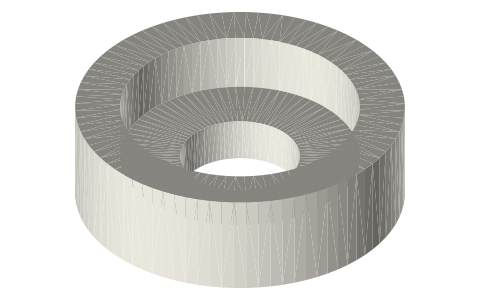

Fits with

Questions

Why 3 in?

A 36 mm stroke crank and its con-rods need more than the 47.5 mm bore of a 2 in fitting; the 3 in tee's 72.9 mm bore clears them.
