Tri-clamp spool bored and honed: 2 in × 6 in, bore Ø48.00, a power-piston cylinder

Can a tri-clamp spool be bored and honed as a piston cylinder? · Hardware · basis: Stock 2 in × 6 in spool (gen_hardware.tc_spool: ISO 2852 faces, Ø50.8 × 1.65 tube) with the bore finished to Ø48.00 over its whole length: the finished part is drawn as its own part

Also called: tri clamp spool bored, honed tri clamp spool piston, sanitary spool as cylinder, 2 inch spool bore 48

Long Earth Society build part. The power cylinder of my free-piston generator. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A standard 2 in × 6 in spool with its bore opened from Ø47.5 to Ø48.00 end to end and finished as a running bore. The wall becomes 1.40 mm; the faces are untouched.
  • On the free-piston generator the 48.00 bore is the power piston's clearance seal (the piston's 30 mm land runs in it) and the section of the vessel the alternator works through: the stator and coil sit outside the wall, so the vessel stays sealed and no wire passes through it.
  • Hoop stress at the relief setting (15 bar gauge): 27.5 MPa. Do not clamp anything over the piston's seal zone: the generator hangs from the cooler spool S3.

Tri-clamp spool bored and honed: 2 in × 6 in, bore Ø48.00, a… size chart

featurevalue
boreØ48.00 × 152.4, running fit for the piston land
wall1.3999999999999986
facesISO 2852, 2 in

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ48.00 × 152.4power piston seal land Ø48.00 × 30 (clearance seal)runall
boreØ48.00magnet carrier Ø47.0 (0.5 radial gap, no contact)designedall
facesISO 2852 2 in, both endshigh-pressure clamps + half gaskets round leaves B and Cclampall
tube ODØ50.8stator pack teeth; hanger above the piston travel onlyclampall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (tube OD and wall, clamp fittings)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
spool-2in-6in-bored-48.002 in × 6 in (152.4) spool, bore finished to Ø48.00 end to end (wall 1.40); ISO 2852 facesSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-bored-spool

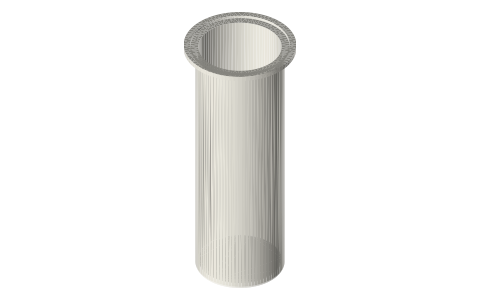

Tri-clamp spool bored and honed: 2 in × 6 in, bore Ø48.00, a power-piston cylinder, isometric render of a generated part
Render of spool-2in-6in-bored-48.00 from the free STEP; not to scale.

Fits with

Questions

Why bore it to 48.00?

The as-made bore of sanitary tube is not a running surface. Opening it to one round, straight, finished diameter gives the piston a clearance seal; 48.00 cleans up the 47.5 nominal bore and leaves a 1.40 wall.
