Tri-clamp butterfly valves, printable: 1½ to 4 in
Can I 3D print a tri-clamp butterfly valve? · Hardware · basis: Xem Studio design: two bolted body halves with ISO 2852 clamp faces, a flexible seat ring clamped between them, a full-bore disc on a Ø6 D-flat stem, a lever
Also called: tri clamp butterfly valve, 3d printed butterfly valve, 1.5 tri clamp valve, sanitary butterfly valve stl
Exact dimensions. True size, with no tolerance added.
- sizes
- 5 in table
Notes
- Face to face 44 mm for every size: each half is the clamp face and its 14 mm neck (room for the clamp) plus an 8 mm body; the seat ring sits in counterbores in both halves.

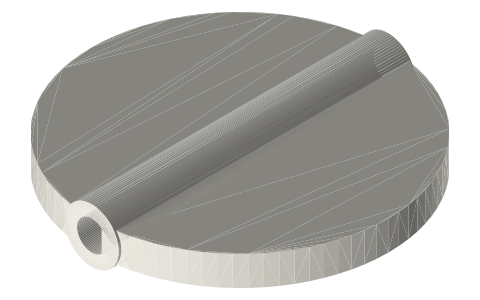

- The disc is drawn at the bore; it seals by squeezing the flexible seat. Quarter turn: lever along the line is open.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Tri-clamp butterfly valves, printable: 1½ to 4 in size chart
| size (in) | face to face (mm) | body od (mm) | bore (mm) | bolts |
|---|---|---|---|---|
| 1.5 | 44.0 | 74.5 | 34.8 | 4 × M5 |
| 2 | 44.0 | 88.0 | 47.5 | 4 × M5 |
| 2.5 | 44.0 | 101.5 | 60.2 | 4 × M5 |
| 3 | 44.0 | 115.0 | 72.9 | 4 × M5 |
| 4 | 44.0 | 143.0 | 97.38 | 4 × M5 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GW Kent | Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness | web | publisher's guide; dimensions cited |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 25 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| butterfly-body-half-1.5in | 1.5 in body half (two per valve): clamp face, Ø74 body, seat counterbore, half the Ø6.4 stem bore, four M5 holes on r 31.2 | STEP · STL |
| butterfly-seat-1.5in | 1.5 in seat ring Ø46.8 × Ø34.80 × 3 with the stem holes (flexible material) | STEP · STL |
| butterfly-disc-1.5in | 1.5 in disc Ø34.80 (= the bore) × 4 on a D-flat Ø6 stem bore | STEP · STL |
| butterfly-stem-1.5in | 1.5 in stem Ø6 × 114 with a 1.0 D-flat | STEP · STL |
| butterfly-handle-1.5in | 1.5 in lever 119 long with a D-flat bore | STEP · STL |
| butterfly-body-half-2in | 2 in body half (two per valve): clamp face, Ø88 body, seat counterbore, half the Ø6.4 stem bore, four M5 holes on r 38.0 | STEP · STL |
| butterfly-seat-2in | 2 in seat ring Ø59.5 × Ø47.50 × 3 with the stem holes (flexible material) | STEP · STL |
| butterfly-disc-2in | 2 in disc Ø47.50 (= the bore) × 4 on a D-flat Ø6 stem bore | STEP · STL |
| butterfly-stem-2in | 2 in stem Ø6 × 128 with a 1.0 D-flat | STEP · STL |
| butterfly-handle-2in | 2 in lever 141 long with a D-flat bore | STEP · STL |
| butterfly-body-half-2.5in | 2.5 in body half (two per valve): clamp face, Ø102 body, seat counterbore, half the Ø6.4 stem bore, four M5 holes on r 44.8 | STEP · STL |
| butterfly-seat-2.5in | 2.5 in seat ring Ø72.2 × Ø60.20 × 3 with the stem holes (flexible material) | STEP · STL |
| butterfly-disc-2.5in | 2.5 in disc Ø60.20 (= the bore) × 6 on a D-flat Ø6 stem bore | STEP · STL |
| butterfly-stem-2.5in | 2.5 in stem Ø6 × 142 with a 1.0 D-flat | STEP · STL |
| butterfly-handle-2.5in | 2.5 in lever 162 long with a D-flat bore | STEP · STL |
| butterfly-body-half-3in | 3 in body half (two per valve): clamp face, Ø115 body, seat counterbore, half the Ø6.4 stem bore, four M5 holes on r 51.5 | STEP · STL |
| butterfly-seat-3in | 3 in seat ring Ø84.9 × Ø72.90 × 3 with the stem holes (flexible material) | STEP · STL |
| butterfly-disc-3in | 3 in disc Ø72.90 (= the bore) × 6 on a D-flat Ø6 stem bore | STEP · STL |
| butterfly-stem-3in | 3 in stem Ø6 × 155 with a 1.0 D-flat | STEP · STL |
| butterfly-handle-3in | 3 in lever 184 long with a D-flat bore | STEP · STL |
| butterfly-body-half-4in | 4 in body half (two per valve): clamp face, Ø143 body, seat counterbore, half the Ø6.4 stem bore, four M5 holes on r 65.5 | STEP · STL |
| butterfly-seat-4in | 4 in seat ring Ø109.4 × Ø97.38 × 3 with the stem holes (flexible material) | STEP · STL |
| butterfly-disc-4in | 4 in disc Ø97.38 (= the bore) × 6 on a D-flat Ø6 stem bore | STEP · STL |
| butterfly-stem-4in | 4 in stem Ø6 × 183 with a 1.0 D-flat | STEP · STL |
| butterfly-handle-4in | 4 in lever 229 long with a D-flat bore | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-butterfly-valves

Fits with
Questions
What holds it together?
Four M5 bolts through both body halves; the clamp faces then go into the line with standard clamps and gaskets.
