Tri-clamp heat sink for 2 in tube, 34 mm, fins to Ø72

What compact fin sleeve fits a 2 inch tri-clamp tube? · Hardware · basis: Design values: the band of ta-shroud-2in-front / -back is Ø75 inside (r 37.5) and 35 between its end walls; the sleeve, its ears, M4 heads and nuts stay inside r 37

Also called: fin sleeve inside burner shroud, thermoacoustic hot fin sleeve 2 inch, clamp on fins 2 inch tube

Long Earth Society build part. The fin sleeve of my modular thermoacoustic engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • Two halves clamped round a plain 2 in tube over a hot exchanger, inside the flame shroud's band: the flame gas from the flue passes between the fins, the fins conduct into the tube wall and the wall into the exchanger inside.
  • Everything stays inside the band: fins to r 36, ears to r 36, the M4 × 12 head and nut at x ±32 inside r 37; 34 long in the band's 35. No fin within ±20° of the ears, so the screw head and nut have room.
  • Optional: the engine runs without it (the flame heats the bare tube). Fits: bore clamps the tube (1 mm split take-up); ear holes M4 clearance.

Tri-clamp heat sink for 2 in tube, 34 mm, fins to Ø72 size chart

partbore (mm)length (mm)finsfin tip dia (mm)ears to r (mm)screws
ta-fin-sleeve-half-2in-34-r3650.834.020 per sleeve, 1.5 thick72.036.02 × M4 × 12 + nuts

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.82 in tube outside over the hot exchangerclampall
split1.0 total (0.5 per half)the other halfclampall
ear holesØ4.5 at x ±32M4 clearance (ISO 273 medium)designedall
fins and earsto r 36flame shroud band's chamber wall at r 37.5 (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem Studiotools/gen_ta_modular.py: the section geometry, the network model and every number on these pagescodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ta-fin-sleeve-half-2in-34-r36fin-sleeve half (y ≥ 0.5): bore Ø50.8, wall 3, radial fins 1.5 thick to Ø72 every 15° (none within ±20° of the ears), 34 long; ears x ±27.9..36 with Ø4.5 at x ±32: fits inside the flame shroud's bandSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-compact-heat-sink-2in

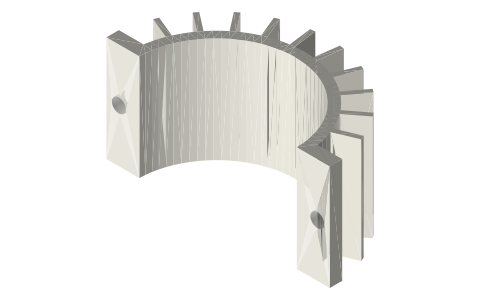

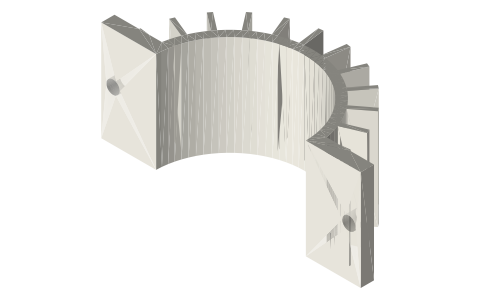

Tri-clamp heat sink for 2 in tube, 34 mm, fins to Ø72, isometric render of a generated part
