Tri-clamp heat sink: clamp-on fin sleeve for 2 in tube, 34 mm

What clamp-on heat sink fits a 2 inch tri-clamp tube? · Hardware · basis: Bore = 2 in tube OD Ø50.8; length covers the 12 mm hot exchanger with 11 mm each side

Also called: clamp on fin sleeve tube, finned collar 2 inch tube, hot end fins thermoacoustic

Long Earth Society build part. The fin sleeves on my generator hot zones. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Two halves with 24 radial fins each side of the split, clamped round the plain core tube over the hot exchanger with one M4 × 16 and nut each side. The flame gas in the burner drum passes between the fins; the fins conduct into the tube wall, the wall into the slotted hot exchanger inside.
  • Optional: the engine is complete without it (the drum then heats the bare tube); with it the tube wall reaches a given temperature with less flame.
  • Fits: bore clamps the tube (1 mm split take-up); ear holes M4 clearance.

Tri-clamp heat sink: clamp-on fin sleeve for 2 in tube, 34 mm size chart

featurevalue
boreØ50.8
fins24 × 1.5 to Ø72
length34

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.82 in tube outside over the hot exchangerclampall
split1.0 total (0.5 per half)the other halfclampall
ear holesØ4.5M4 clearance (ISO 273 medium)designedall
fins24 × 1.5 to Ø72flame gas (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem Studiotools/gen_ta_power.py: the network model and every dimension on this pagecodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fin-sleeve-half-2in-34fin-sleeve half (y ≥ 0.5): bore Ø50.8, wall 3, 24 radial fins 1.5 thick to Ø72, 34 long; ears x ±27.9..44 with Ø4.5 at x ±40STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tube-heat-sink-2in

Tri-clamp heat sink: clamp-on fin sleeve for 2 in tube, 34 mm, isometric render of a generated part
Render of fin-sleeve-half-2in-34 from the free STEP; not to scale.

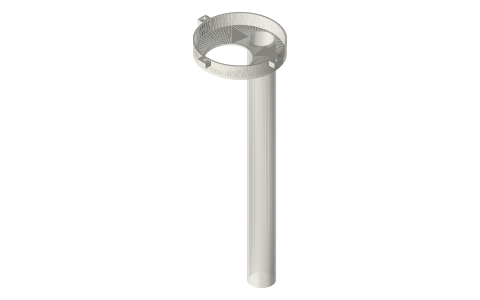

Fits with

Questions

Why not weld fins on the spool?

A clamp-on sleeve keeps the spool a plain, orderable part and can be left off.
