Burner stand for a 10 in tri-clamp cup

What stand holds a 10 inch tri-clamp cup over a burner? · Hardware · basis: Exact geometry

Also called: tri clamp burner stand

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • The ring's top (201.53 above the bench) carries the 10 in clamp's underside; the cup hangs through it, its floor 150 (main) or 140.4 (pot) above the bench, which leaves the burner room under it. Three legs, each with an M5 hole for the optional shroud's tab.

Burner stand for a 10 in tri-clamp cup size chart

ring (mm)legsring top (mm)
Ø264 / Ø330 × 83 × 30 × 10201.53

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
ring topØ264–Ø330 flatunderside of the 10 in clampdesignedall
leg holesØ5.5 radial at z 170shcs-m5x20 (shroud tabs)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
burner-stand-10inburner stand: ring Ø264/Ø330 × 8 under the 10 in clamp, three legs r 150..160 × 30 at 90/210/330°, feetSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cup-burner-stand-10in

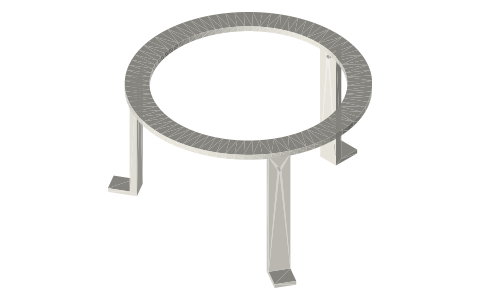

Burner stand for a 10 in tri-clamp cup, isometric render of a generated part
Render of burner-stand-10in from the free STEP; not to scale.

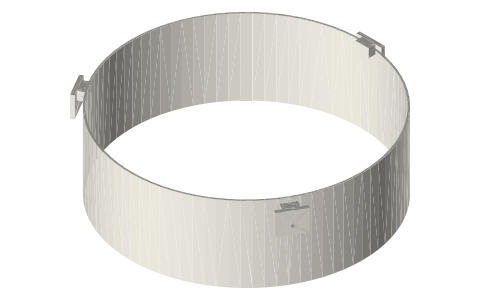

Fits with

Questions

What holds the engine?

The clamp at the cup's top joint rests on the ring.
