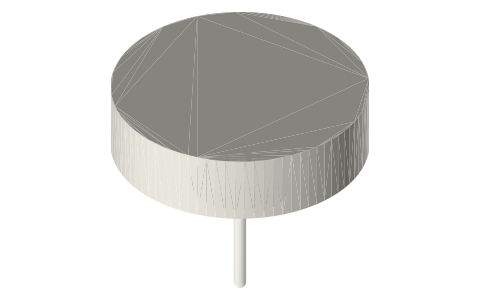

Tri-clamp dial thermometers (envelope): 3 and 5 in dial, ¼ in stem 2½ to 12 in, 1½ in clamp
How long a stem does a tri-clamp thermometer need? · Hardware · basis: Envelope drawn by Xem Studio: the standard 1–1½ in solid cap, a ¼ in (6.35) stem, a 12 × 20 neck and a back-connected case at the nominal dial size + 6 mm; check a real thermometer's case before designing tight around it
Also called: tri clamp thermometer, sanitary thermometer 1.5 tri clamp, brewing thermometer tri clamp, temperature stick tri clamp
Exact dimensions. True size, with no tolerance added.
- sizes
- 10 in table
Notes
- Sanitary dial thermometers with a clamp face: a space model for planning a lid or a stand around one, or a dummy to print. Stem length is from the clamp face to the tip.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Tri-clamp dial thermometers (envelope): 3 and 5 in dial, ¼ in stem… size chart
| dial (in) | stem (in) | stem (mm) | stem od (mm) | case od (mm) |
|---|---|---|---|---|
| 3 | 2.5 | 63.5 | 6.35 | 82.2 |
| 3 | 4 | 101.6 | 6.35 | 82.2 |
| 3 | 6 | 152.4 | 6.35 | 82.2 |
| 3 | 9 | 228.6 | 6.35 | 82.2 |
| 3 | 12 | 304.8 | 6.35 | 82.2 |
| 5 | 2.5 | 63.5 | 6.35 | 133.0 |
| 5 | 4 | 101.6 | 6.35 | 133.0 |
| 5 | 6 | 152.4 | 6.35 | 133.0 |
| 5 | 9 | 228.6 | 6.35 | 133.0 |
| 5 | 12 | 304.8 | 6.35 | 133.0 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GW Kent | Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness | web | publisher's guide; dimensions cited |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 10 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| dial-thermometer-3in-1.5in-clamp-2.5in | 3 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 2.5 in below the face, case Ø82.2, top 56.4 above the face | STEP · STL |
| dial-thermometer-3in-1.5in-clamp-4in | 3 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 4 in below the face, case Ø82.2, top 56.4 above the face | STEP · STL |
| dial-thermometer-3in-1.5in-clamp-6in | 3 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 6 in below the face, case Ø82.2, top 56.4 above the face | STEP · STL |
| dial-thermometer-3in-1.5in-clamp-9in | 3 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 9 in below the face, case Ø82.2, top 56.4 above the face | STEP · STL |
| dial-thermometer-3in-1.5in-clamp-12in | 3 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 12 in below the face, case Ø82.2, top 56.4 above the face | STEP · STL |
| dial-thermometer-5in-1.5in-clamp-2.5in | 5 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 2.5 in below the face, case Ø133.0, top 62.4 above the face | STEP · STL |
| dial-thermometer-5in-1.5in-clamp-4in | 5 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 4 in below the face, case Ø133.0, top 62.4 above the face | STEP · STL |
| dial-thermometer-5in-1.5in-clamp-6in | 5 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 6 in below the face, case Ø133.0, top 62.4 above the face | STEP · STL |
| dial-thermometer-5in-1.5in-clamp-9in | 5 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 9 in below the face, case Ø133.0, top 62.4 above the face | STEP · STL |
| dial-thermometer-5in-1.5in-clamp-12in | 5 in dial thermometer envelope on a 1–1½ in clamp: ¼ in stem 12 in below the face, case Ø133.0, top 62.4 above the face | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-dial-thermometers

Fits with
Questions

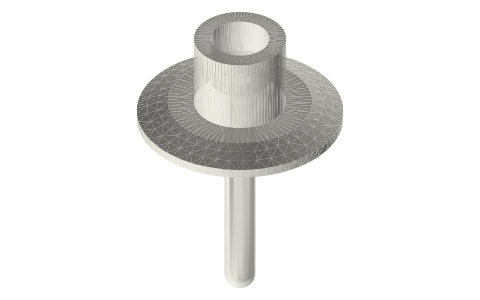

Thermometer or thermowell?
A thermometer with a clamp face touches the liquid; a thermowell keeps any ¼ in stem dry and lets you swap probes without opening the vessel.
