Tri-clamp × female NPT adapters (22MP style): ½ to 4 in

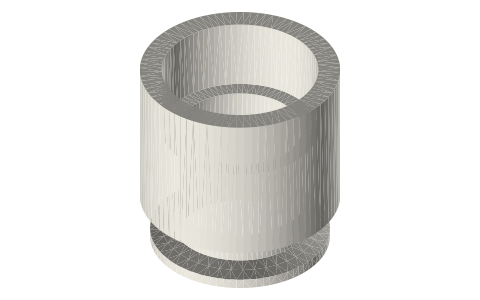

How long is a tri-clamp to female NPT adapter? · Standard part · basis: Face-to-end A per Dixon T22MP; tap drill and L2 per ASME B1.20.1; body Ø the larger of the tube and the Class 3000 coupling OD (Xem Studio drawing)
Also called: tri clamp to female npt, 22mp adapter dimensions, tri clamp fnpt adapter, tri clamp to 1/4 npt
Exact dimensions. True size, with no tolerance added.
- sizes
- 10 in table
Notes
- Clamp face one end, a female pipe thread the other, drawn as the tap-drill bore over L2 + 2 so it can be tapped. Only sizes with a published A are drawn.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Tri-clamp × female NPT adapters (22MP style): ½ to 4 in size chart
| clamp (in) | npt | A (in) | A (mm) | tap drill (mm) | L2 (mm) |
|---|---|---|---|---|---|
| ½ | ⅛ | 1.25 | 31.8 | 8.6 | 6.7 |
| ½ | ¼ | 1.5 | 38.1 | 11.1 | 10.2 |
| ½ | ¾ | 1.63 | 41.4 | 23.4 | 13.9 |
| ¾ | ¼ | 1.5 | 38.1 | 11.1 | 10.2 |
| ¾ | ¾ | 1.63 | 41.4 | 23.4 | 13.9 |
| 1½ | 1½ | 2.25 | 57.1 | 44.0 | 18.38 |
| 2 | 2 | 2.34 | 59.4 | 56.4 | 19.22 |
| 2½ | 2½ | 2.09 | 53.1 | 66.7 | 28.89 |
| 3 | 3 | 2.19 | 55.6 | 82.6 | 30.48 |
| 4 | 4 | 2.63 | 66.8 | 108.0 | 33.02 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Dixon | Clamp × male NPT (T21MP) and clamp × female NPT (T22MP) adapters: A per size | publisher's catalogue; dimensions cited | |
| ASME | B1.20.1 Pipe threads, general purpose (NPT): major diameter, L2, tap drill; B16.11 forged fittings (Class 3000 couplings); B36.10 Sch 40 bore | standard | ASME; dimensions are facts verify |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 10 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| female-npt-0.5in-x-1-8 | ½ in clamp × ⅛ FNPT: 1.25 in face to end; tap-drill bore Ø8.6 × 8.7 | STEP · STL |
| female-npt-0.5in-x-1-4 | ½ in clamp × ¼ FNPT: 1.5 in face to end; tap-drill bore Ø11.1 × 12.2 | STEP · STL |
| female-npt-0.5in-x-3-4 | ½ in clamp × ¾ FNPT: 1.63 in face to end; tap-drill bore Ø23.4 × 15.9 | STEP · STL |
| female-npt-0.75in-x-1-4 | ¾ in clamp × ¼ FNPT: 1.5 in face to end; tap-drill bore Ø11.1 × 12.2 | STEP · STL |
| female-npt-0.75in-x-3-4 | ¾ in clamp × ¾ FNPT: 1.63 in face to end; tap-drill bore Ø23.4 × 15.9 | STEP · STL |
| female-npt-1.5in-x-1-1-2 | 1½ in clamp × 1½ FNPT: 2.25 in face to end; tap-drill bore Ø44.0 × 20.4 | STEP · STL |
| female-npt-2in-x-2 | 2 in clamp × 2 FNPT: 2.34 in face to end; tap-drill bore Ø56.4 × 21.2 | STEP · STL |
| female-npt-2.5in-x-2-1-2 | 2½ in clamp × 2½ FNPT: 2.09 in face to end; tap-drill bore Ø66.7 × 30.9 | STEP · STL |
| female-npt-3in-x-3 | 3 in clamp × 3 FNPT: 2.19 in face to end; tap-drill bore Ø82.6 × 32.5 | STEP · STL |
| female-npt-4in-x-4 | 4 in clamp × 4 FNPT: 2.63 in face to end; tap-drill bore Ø108.0 × 35.0 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-female-npt-adapters

Fits with
Questions
How long is a 1½ in tri-clamp × 1½ in FNPT adapter?
2.25 in (57.2 mm) face to end.
