2 in double-faced guide plate for a hollow Ø10 piston rod

How do I guide a piston rod inside a tri-clamp crankcase? · Hardware · basis: ISO 2852 faces on both sides as the clamp-in bearing plate on this site; bushing size from its standard

Also called: tri clamp guide plate, piston rod guide tri clamp

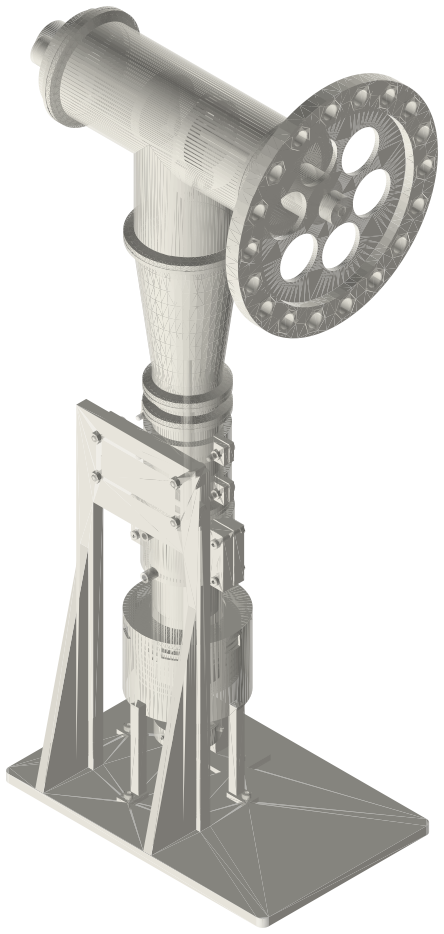

Long Earth Society build part. The rod guide of my charged beta. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Clamped between the power cylinder and the reducer with a gasket and a clamp on each face. Two 10 × 14 × 15 sleeve bushings 48.4 mm apart guide the hollow piston rod, so the con-rod's side load never reaches the piston. Four Ø8 vents connect the back of the piston to the crankcase (the buffer).

2 in double-faced guide plate for a hollow Ø10 piston rod size chart

featurevalue
thickness16.0
bossØ22, z −2.4 to 61
seatsØ14 × 15 at both ends
vents4 × Ø8 on r 17

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
facesISO 2852 2 in both sides, 16 apartType B gaskets, 2 in clampsclampall
bushing seatsØ14 × 15 at z −2.4 and 4610 × 14 × 15 sleeve bushingspressall
vents4 × Ø8 on r 17buffer passage (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
guide-plate-2in-10mm2 in double-faced guide plate: ISO 2852 faces at z 0 and 16, guide boss Ø22 from z −2.4 to 61, two Ø14 seats for 10 × 14 × 15 bushings (−2.4–12.6, 46–61), four Ø8 vents on r 17STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-guide-plate

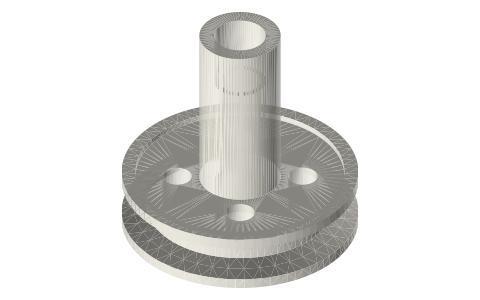

2 in double-faced guide plate for a hollow Ø10 piston rod, isometric render of a generated part
Render of guide-plate-2in-10mm from the free STEP; not to scale.

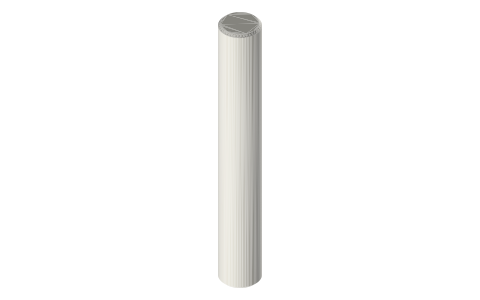

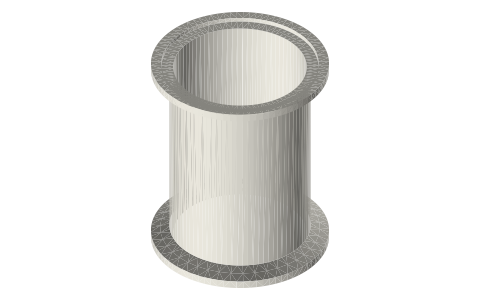

Fits with

Questions

Why two bushings?

One bushing is a pivot; two 48 mm apart hold the rod straight.
