Tri-clamp orifice-plate gaskets: 1½ to 4 in, holes at 25, 50 and 75 % of the bore

What is a tri-clamp orifice plate gasket? · Hardware · basis: Xem Studio design: the ISO 2852 Type B gasket with a 1.5 mm plate across the bore and one centre hole

Also called: tri clamp orifice plate, tri clamp restrictor gasket, orifice gasket

Exact dimensions. True size, with no tolerance added.

sizes
12 in table

Notes

  • Restricts flow at a joint: slows a drain, sets a flow for a chiller or a sparge, or makes a crude flow meter. Hole sizes are 25, 50 and 75 % of the bore.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp orifice-plate gaskets: 1½ to 4 in, holes at 25, 50 and 75… size chart

size (in)bore (mm)hole (mm)
1.534.88.7
1.534.817.4
1.534.826.1
247.511.9
247.523.8
247.535.6
372.918.2
372.936.5
372.954.7
497.3824.3
497.3848.7
497.3873.0

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 12 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
orifice-gasket-1.5in-8.7mm1.5 in orifice-plate gasket: 1.5 plate, Ø8.7 hole (25 % of the bore)STEP · STL
orifice-gasket-1.5in-17.4mm1.5 in orifice-plate gasket: 1.5 plate, Ø17.4 hole (50 % of the bore)STEP · STL
orifice-gasket-1.5in-26.1mm1.5 in orifice-plate gasket: 1.5 plate, Ø26.1 hole (75 % of the bore)STEP · STL
orifice-gasket-2in-11.9mm2 in orifice-plate gasket: 1.5 plate, Ø11.9 hole (25 % of the bore)STEP · STL
orifice-gasket-2in-23.8mm2 in orifice-plate gasket: 1.5 plate, Ø23.8 hole (50 % of the bore)STEP · STL
orifice-gasket-2in-35.6mm2 in orifice-plate gasket: 1.5 plate, Ø35.6 hole (75 % of the bore)STEP · STL
orifice-gasket-3in-18.2mm3 in orifice-plate gasket: 1.5 plate, Ø18.2 hole (25 % of the bore)STEP · STL
orifice-gasket-3in-36.5mm3 in orifice-plate gasket: 1.5 plate, Ø36.5 hole (50 % of the bore)STEP · STL
orifice-gasket-3in-54.7mm3 in orifice-plate gasket: 1.5 plate, Ø54.7 hole (75 % of the bore)STEP · STL
orifice-gasket-4in-24.3mm4 in orifice-plate gasket: 1.5 plate, Ø24.3 hole (25 % of the bore)STEP · STL
orifice-gasket-4in-48.7mm4 in orifice-plate gasket: 1.5 plate, Ø48.7 hole (50 % of the bore)STEP · STL
orifice-gasket-4in-73mm4 in orifice-plate gasket: 1.5 plate, Ø73 hole (75 % of the bore)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-orifice-plate-gaskets

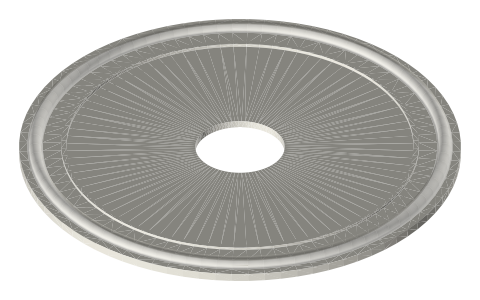

Tri-clamp orifice-plate gaskets: 1½ to 4 in, holes at 25, 50 and 75 % of the bore, isometric render of a generated part
Render of orifice-gasket-3in-18.2mm from the free STEP; not to scale.

Fits with

Questions

Which hole size?

Start at 50 % of the bore; the flow through an orifice goes roughly with the hole area.
