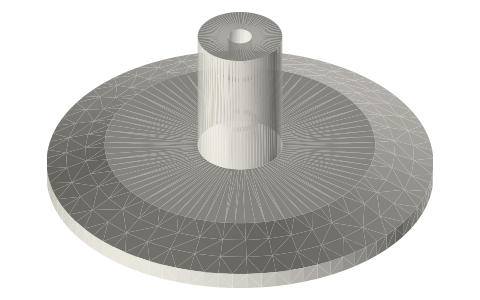

Tri-clamp probe gland caps: Ø4, Ø6 and ¼ in probes, 1 to 3 per cap
How do I put a 6 mm temperature probe through a tri-clamp lid? · Hardware · basis: Xem Studio design on the standard solid cap: a boss bored to the probe diameter with two internal grooves for a probe-size × 1.5 O-ring
Also called: tri clamp temperature probe port, ds18b20 tri clamp, 6mm probe gland, fermenter probe gland
Exact dimensions. True size, with no tolerance added.
- sizes
- 18 in table
Notes
- Slide a stainless probe (the common 6 × 50 mm DS18B20 temperature probe, a Ø4 thermocouple or a ¼ in RTD) down through the lid; two O-rings seal it and let you set the depth.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Tri-clamp probe gland caps: Ø4, Ø6 and ¼ in probes, 1 to 3 per cap size chart
| clamp | probe (mm) | ports | o ring |
|---|---|---|---|
| 1–1½ | 4.0 | 1 | 4 × 1.5 |
| 1–1½ | 4.0 | 2 | 4 × 1.5 |
| 1–1½ | 4.0 | 3 | 4 × 1.5 |
| 1–1½ | 6.0 | 1 | 6 × 1.5 |
| 1–1½ | 6.0 | 2 | 6 × 1.5 |
| 1–1½ | 6.0 | 3 | 6 × 1.5 |
| 1–1½ | 6.35 | 1 | 6.35 × 1.5 |
| 1–1½ | 6.35 | 2 | 6.35 × 1.5 |
| 1–1½ | 6.35 | 3 | 6.35 × 1.5 |
| 2 | 4.0 | 1 | 4 × 1.5 |
| 2 | 4.0 | 2 | 4 × 1.5 |
| 2 | 4.0 | 3 | 4 × 1.5 |
| 2 | 6.0 | 1 | 6 × 1.5 |
| 2 | 6.0 | 2 | 6 × 1.5 |
| 2 | 6.0 | 3 | 6 × 1.5 |
| 2 | 6.35 | 1 | 6.35 × 1.5 |
| 2 | 6.35 | 2 | 6.35 × 1.5 |
| 2 | 6.35 | 3 | 6.35 × 1.5 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GW Kent | Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness | web | publisher's guide; dimensions cited |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 18 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| gland-cap-1.5in-4mm-x1 | 1–1½ in cap with 1 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-1.5in-4mm-x2 | 1–1½ in cap with 2 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-1.5in-4mm-x3 | 1–1½ in cap with 3 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-1.5in-6mm-x1 | 1–1½ in cap with 1 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-1.5in-6mm-x2 | 1–1½ in cap with 2 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-1.5in-6mm-x3 | 1–1½ in cap with 3 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-1.5in-6.35mm-x1 | 1–1½ in cap with 1 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
| gland-cap-1.5in-6.35mm-x2 | 1–1½ in cap with 2 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
| gland-cap-1.5in-6.35mm-x3 | 1–1½ in cap with 3 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
| gland-cap-2in-4mm-x1 | 2 in cap with 1 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-2in-4mm-x2 | 2 in cap with 2 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-2in-4mm-x3 | 2 in cap with 3 × Ø4 probe gland: Ø14 × 22 boss, two O-ring grooves Ø6.4 × 2 | STEP · STL |
| gland-cap-2in-6mm-x1 | 2 in cap with 1 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-2in-6mm-x2 | 2 in cap with 2 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-2in-6mm-x3 | 2 in cap with 3 × Ø6 probe gland: Ø16 × 22 boss, two O-ring grooves Ø8.4 × 2 | STEP · STL |
| gland-cap-2in-6.35mm-x1 | 2 in cap with 1 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
| gland-cap-2in-6.35mm-x2 | 2 in cap with 2 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
| gland-cap-2in-6.35mm-x3 | 2 in cap with 3 × Ø6.35 probe gland: Ø16.35 × 22 boss, two O-ring grooves Ø8.75 × 2 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-probe-gland-caps

Fits with



Questions
Which O-ring?
One the size of the probe with a 1.5 mm section (6 × 1.5 for a 6 mm probe), two per port.
