Slip-on fin sleeve for a 2 in closed hot end (nine Ø76 ring fins)

How do I add fins to a plain tri-clamp hot end? · Hardware · basis: Design values; fin set as the finned hot head on this site so the same burner shroud fits

Also called: stirling hot end fins, slip on fin sleeve tri clamp

Long Earth Society build part. The fins of my performance engines' hot end. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A separate part: a finned cup that slides over the closed end of a 2 in hot spool and sits on it. Bore Ø50.8 (the tube's OD) and an inside bottom shaped to the closed end, so the heat crosses where they touch. Nine Ø76 × 1.5 ring fins at 5 mm pitch take the flame's heat in the burner shroud.
  • Optional: the engine runs without it at a lower hot-wall temperature for the same flame.

Slip-on fin sleeve for a 2 in closed hot end size chart

featurevalue
boreØ50.8
depth45.0
fins9 × Ø76 × 1.5, 5 pitch

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.8 with a 1.5 inner round at the bottom2 in tube OD and closed endslideall
fins9 × Ø76 × 1.5, 5 pitchburner shroud Ø88 bore (gas annulus)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fin-sleeve-2in-9x76slip-on hot-end fin sleeve for a 2 in closed end: cup, bore Ø50.8 with the closed end's 1.5 round inside its bottom, wall 2, bottom 2, 45.0 deep; 9 ring fins Ø76 × 1.5 at 5 pitchSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-ring-fin-sleeve

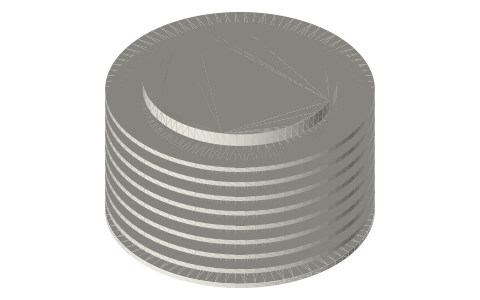

Slip-on fin sleeve for a 2 in closed hot end (nine Ø76 ring fins), isometric render of a generated part
Render of fin-sleeve-2in-9x76 from the free STEP; not to scale.

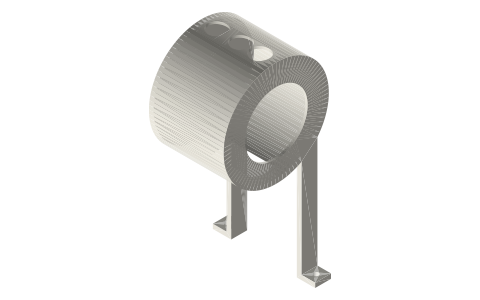

Fits with

Questions

Does it have to be a press fit?

No: it slides on and sits on the closed end; at temperature the fit closes up if the sleeve grows less than the tube.
