2 in end cap with a bored boss for two 8 × 12 × 20 sleeve bushings (piston-rod gland)

How do I take a piston rod out of a charged tri-clamp cylinder? · Hardware · basis: ISO 2852 2 in face; bushing size from its standard; boss length is a design value

Also called: tri clamp rod gland, end cap with bushing boss

Long Earth Society build part. The piston-rod gland of my horizontal gamma. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A 2 in end cap with a bored boss: two 8 × 12 × 20 sleeve bushings 36 mm apart guide the Ø8 piston rod and are its gland. The rod's side load from the con-rod is taken here, so the piston in the bore carries none.

2 in end cap with a bored boss for two 8 × 12 × 20 sleeve bushings size chart

featurevalue
faceISO 2852 2 in
bossØ24, to 62 from the face
seatØ12, z 6–62

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
faceISO 2852 2 inType B gasket, 2 in clampclampall
gland seatØ12, z 6–62two 8 × 12 × 20 sleeve bushingspressgland-cap-2in-2x-8x12x20*
gland seatØ10, z 6–62two 6 × 10 × 10 sleeve bushingspressgland-cap-2in-2x-6x10x10*
port bosses3 × 1/4-18 NPT on r 17, tap drill Ø11.1 × 12fill valve, gauge, relief valvedesignedgland-cap-2in-2x-6x10x10*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
gland-cap-2in-2x-8x12x202 in rod-gland cap: ISO 2852 face, body Ø50.8 to 12, boss Ø24 to 62, Ø12 seat z 6–62 for two 8 × 12 × 20 bushings (6–26, 42–62), Ø9 belowSTEP · STL
gland-cap-2in-2x-6x10x10-3x-npt142 in rod-gland cap for a Ø6 rod: ISO 2852 face, body Ø50.8 to 12, boss Ø22 to 62, Ø10 seat z 6–62 for two 6 × 10 × 10 bushings (6–16, 52–62), three 1/4 NPT bosses on its back on r 17STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-rod-gland-cap

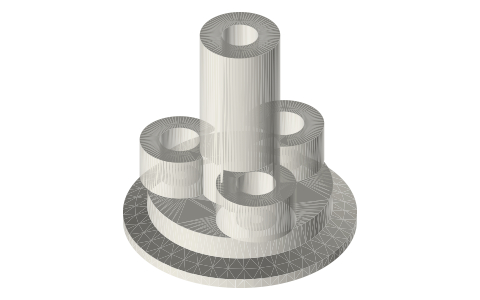

2 in end cap with a bored boss for two 8 × 12 × 20 sleeve bushings (piston-rod gland), isometric render of a generated part
Render of gland-cap-2in-2x-6x10x10-3x-npt14 from the free STEP; not to scale.

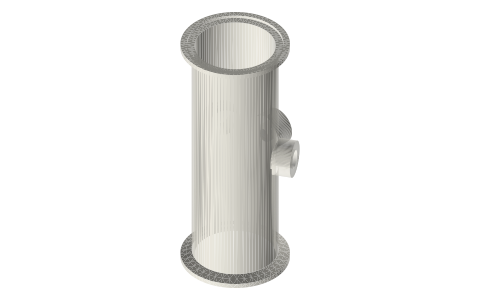

Fits with

Questions

Does it leak?

A close-running gland always leaks a little: at 5 bar gauge about 10.1 mL/min at 5 µm radial clearance, 81 mL/min at 10 µm (at the gland's pressure).
