Tri-clamp in-line sight glasses: 1½ to 4 in, 2, 4 and 6 in glass
How is a tri-clamp sight glass built? · Hardware · basis: Xem Studio design: two clamp-face end pieces hold a glass tube (bore = the line bore) in counterbores on flat gaskets, pulled together by four M5 tie rods
Also called: tri clamp sight glass, 1.5 tri clamp sight glass, inline sight glass sanitary, sight glass spool
Exact dimensions. True size, with no tolerance added.
- sizes
- 12 in table
Notes
- A full-bore window in a line or on a vessel outlet: see the wort run off, the level or the colour. Glass tube: bore = the line bore, wall 3 (1½ and 2 in) or 4 (3 and 4 in). Face to face = two end pieces less the seats plus the glass.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Tri-clamp in-line sight glasses: 1½ to 4 in, 2, 4 and 6 in glass size chart
| size (in) | glass (in) | glass od (mm) | glass id (mm) | face to face (mm) | tie rods |
|---|---|---|---|---|---|
| 1.5 | 2 | 40.8 | 34.8 | 98.8 | 4 × M5 × 111 |
| 1.5 | 4 | 40.8 | 34.8 | 149.6 | 4 × M5 × 162 |
| 1.5 | 6 | 40.8 | 34.8 | 200.4 | 4 × M5 × 212 |
| 2 | 2 | 53.5 | 47.5 | 98.8 | 4 × M5 × 111 |
| 2 | 4 | 53.5 | 47.5 | 149.6 | 4 × M5 × 162 |
| 2 | 6 | 53.5 | 47.5 | 200.4 | 4 × M5 × 212 |
| 3 | 2 | 80.9 | 72.9 | 98.8 | 4 × M5 × 111 |
| 3 | 4 | 80.9 | 72.9 | 149.6 | 4 × M5 × 162 |
| 3 | 6 | 80.9 | 72.9 | 200.4 | 4 × M5 × 212 |
| 4 | 2 | 105.4 | 97.4 | 98.8 | 4 × M5 × 111 |
| 4 | 4 | 105.4 | 97.4 | 149.6 | 4 × M5 × 162 |
| 4 | 6 | 105.4 | 97.4 | 200.4 | 4 × M5 × 212 |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| GW Kent | Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness | web | publisher's guide; dimensions cited |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 20 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.

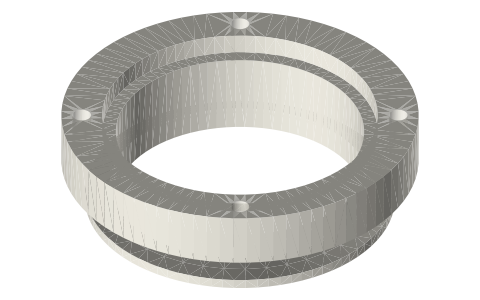

| sight-glass-end-1.5in | 1.5 in sight-glass end piece (two per sight glass): clamp face, Ø64.8 body 30.0 long, glass seat Ø40.8 × 6.0, four Ø5.5 tie-rod holes on r 26.4 | STEP · STL |
| sight-glass-tube-1.5in-2in | 1.5 in glass tube Ø40.8 × Ø34.8 × 50.8: sight glass 98.8 face to face with two end pieces | STEP · STL |
| sight-glass-tube-1.5in-4in | 1.5 in glass tube Ø40.8 × Ø34.8 × 101.6: sight glass 149.6 face to face with two end pieces | STEP · STL |
| sight-glass-tube-1.5in-6in | 1.5 in glass tube Ø40.8 × Ø34.8 × 152.4: sight glass 200.4 face to face with two end pieces | STEP · STL |
| sight-glass-seat-gasket-1.5in | 1.5 in flat seat gasket Ø40.8 × Ø34.8 × 1.5, one in each end seat | STEP · STL |
| sight-glass-end-2in | 2 in sight-glass end piece (two per sight glass): clamp face, Ø77.5 body 30.0 long, glass seat Ø53.5 × 6.0, four Ø5.5 tie-rod holes on r 32.8 | STEP · STL |
| sight-glass-tube-2in-2in | 2 in glass tube Ø53.5 × Ø47.5 × 50.8: sight glass 98.8 face to face with two end pieces | STEP · STL |
| sight-glass-tube-2in-4in | 2 in glass tube Ø53.5 × Ø47.5 × 101.6: sight glass 149.6 face to face with two end pieces | STEP · STL |
| sight-glass-tube-2in-6in | 2 in glass tube Ø53.5 × Ø47.5 × 152.4: sight glass 200.4 face to face with two end pieces | STEP · STL |
| sight-glass-seat-gasket-2in | 2 in flat seat gasket Ø53.5 × Ø47.5 × 1.5, one in each end seat | STEP · STL |
| sight-glass-end-3in | 3 in sight-glass end piece (two per sight glass): clamp face, Ø104.9 body 30.0 long, glass seat Ø80.9 × 6.0, four Ø5.5 tie-rod holes on r 46.5 | STEP · STL |
| sight-glass-tube-3in-2in | 3 in glass tube Ø80.9 × Ø72.9 × 50.8: sight glass 98.8 face to face with two end pieces | STEP · STL |
| sight-glass-tube-3in-4in | 3 in glass tube Ø80.9 × Ø72.9 × 101.6: sight glass 149.6 face to face with two end pieces | STEP · STL |
| sight-glass-tube-3in-6in | 3 in glass tube Ø80.9 × Ø72.9 × 152.4: sight glass 200.4 face to face with two end pieces | STEP · STL |
| sight-glass-seat-gasket-3in | 3 in flat seat gasket Ø80.9 × Ø72.9 × 1.5, one in each end seat | STEP · STL |
| sight-glass-end-4in | 4 in sight-glass end piece (two per sight glass): clamp face, Ø129.4 body 30.0 long, glass seat Ø105.4 × 6.0, four Ø5.5 tie-rod holes on r 58.7 | STEP · STL |
| sight-glass-tube-4in-2in | 4 in glass tube Ø105.4 × Ø97.4 × 50.8: sight glass 98.8 face to face with two end pieces | STEP · STL |
| sight-glass-tube-4in-4in | 4 in glass tube Ø105.4 × Ø97.4 × 101.6: sight glass 149.6 face to face with two end pieces | STEP · STL |
| sight-glass-tube-4in-6in | 4 in glass tube Ø105.4 × Ø97.4 × 152.4: sight glass 200.4 face to face with two end pieces | STEP · STL |
| sight-glass-seat-gasket-4in | 4 in flat seat gasket Ø105.4 × Ø97.4 × 1.5, one in each end seat | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-sight-glasses

Fits with
Questions
What holds the glass?
Each end piece's counterbore with a flat gasket; four M5 rods squeeze the two ends onto the glass.
