Bored 2 in power spool: 2 in × 5 in spool bored to Ø48.00

How do I make a power cylinder from a 2 inch tri-clamp spool? · Hardware · basis: Fabrication spec: a 2 in spool (tube Ø50.8 × 1.65) 127 face to face, its bore finished to Ø48.00 end to end (a machinist bores and hones it); exact geometry

Also called: bored tri clamp spool, tri clamp power cylinder, honed sanitary spool piston

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • The stock bore is Ø47.5; finished to Ø48.00 it leaves 1.40 of wall. The piston is drawn at Ø48.00 exactly: the running fit is the machinist's (see Mating features).
  • Both faces stay standard ISO 2852 2 in faces: Type B gaskets and stock 2 in clamps at each end.

Bored 2 in power spool: 2 in × 5 in spool bored to Ø48.00 size chart

partlength (mm)bore (mm)wall (mm)
spool-2in-5in-bored-48.00127.048.01.4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ48.00 × 127 (finished)power piston Ø48.00runall
facesISO 2852 2 intc-gasket-2in + 2 in clampclampall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
spool-2in-5in-bored-48.002 in spool, 127 face to face (5 in), bored through to Ø48.00 over its full length; ISO 2852 facesSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-spool-2in-bored-48

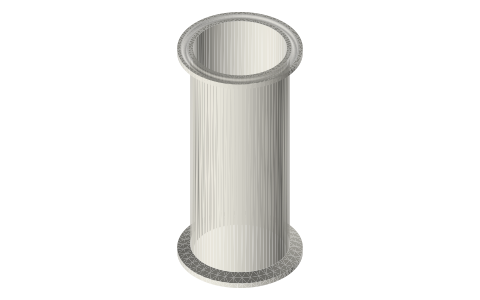

Bored 2 in power spool: 2 in × 5 in spool bored to Ø48.00, isometric render of a generated part
Render of spool-2in-5in-bored-48.00 from the free STEP; not to scale.

Fits with

Questions

Why 48.00?

The smallest round number that cleans up the stock Ø47.5 bore along its whole length, faces included.
