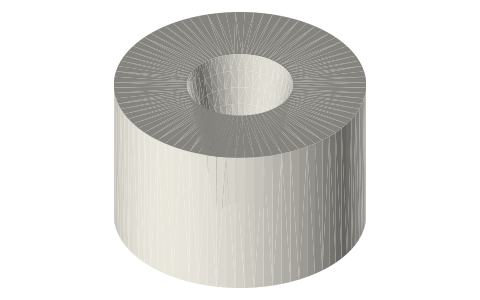

2 in tri-clamp tapered flow insert, Ø20 to Ø8
What tapered flow insert fits a 2 inch tri-clamp tube? · Hardware · basis: Backhaus & Swift's jet pump: an asymmetric orifice whose minor-loss difference between the two flow directions sets a steady pressure drop that opposes Gedeon streaming
Also called: thermoacoustic jet pump, gedeon streaming suppression, tashe jet pump
Long Earth Society build part. The jet pump in my twin-piston generator. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- A torus lets the gas drift steadily round the loop (Gedeon streaming), carrying heat from the hot exchanger straight to the ambient one. A tapered hole loses more pressure on the flow out of its small end than into it, so it sets a steady pressure difference that can cancel the drift: Backhaus & Swift's jet pump.
- Here a Ø47.5 plug, 30 long, sits in the junction cross's lower branch on the gasket lip, its taper from Ø20 (junction) to Ø8 (the ¾ in inertance line). The linear model counts it as a duct of the mean bore.
- Only the twin-piston engine needs it: in the ring engine the pistons themselves block the loop.
2 in tri-clamp tapered flow insert, Ø20 to Ø8 size chart
| feature | value |
|---|---|
| outside | Ø47.5 |
| taper | Ø20 → Ø8 |
| length | 30 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| outside | Ø47.5 | 2 in cross branch bore | slide | all |
| taper | Ø20 → Ø8 over 30 | oscillating gas (no contact) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| J. Acoust. Soc. Am. (S. Backhaus, G. W. Swift) | A thermoacoustic-Stirling heat engine: detailed study, JASA 107(6), 3148 (2000): torus with inertance and compliance, thermal buffer tube, jet pump against Gedeon streaming | web | journal article; cited verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| jet-pump-2in-30 | jet pump Ø47.5 × 30: conical bore Ø20 at the junction side to Ø8 at the inertance side | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tapered-flow-insert

Fits with
Questions
Why not a membrane?
A membrane works too but has to survive the stroke; the jet pump has no moving part.
