Torch stand for a horizontal 2 in tri-clamp tube

What stand holds a torch under a horizontal tri-clamp tube? · Hardware · basis: Design values; ISO 273 clearance for the M4 foot screws

Also called: stirling torch stand, burner holder stirling engine, torch holder for a stirling engine

Long Earth Society build part. The stand that holds the flame under my elbow alpha. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A foot, a post and a ring: the torch head goes up through the Ø32 ring and three M4 set screws centre it, so the flame points straight up at the middle of the hot leg.
  • The post stands to one side so the space under the ring is open. The foot bolts to the engine frame with two M4 screws.

Torch stand for a horizontal 2 in tri-clamp tube size chart

partsize (mm)
foot70 × 40 × 5
ringØ48 / Ø32 × 14
ring top above foot40

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
ring boreØ32torch head (centred by the set screws)designedtorch-stand-*
set-screw holes3 × Ø3.3M4 tap drilldesignedtorch-stand-*
foot holes2 × Ø4.5M4 clearance (ISO 273 medium)designedtorch-stand-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISOISO 273 clearance holes for bolts and screws (fine / medium / coarse)standarddimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
torch-stand-40torch stand: foot 70 × 40 × 5 with 2 × Ø4.5 at ±25, post 14 × 14, ring Ø48 / Ø32 × 14, ring top 40 above the foot, 3 × M4 tapped (Ø3.3) at 120°STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-torch-stand

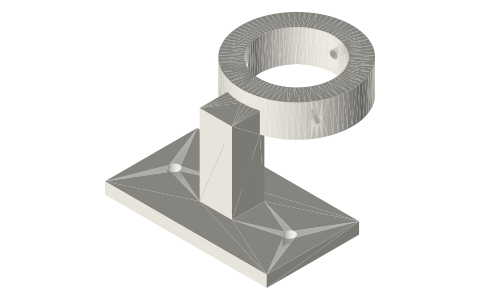

Torch stand for a horizontal 2 in tri-clamp tube, isometric render of a generated part
Render of torch-stand-40 from the free STEP; not to scale.

Fits with

Questions

What torch fits?

Any torch head that passes the Ø32 ring; the three set screws centre it.
