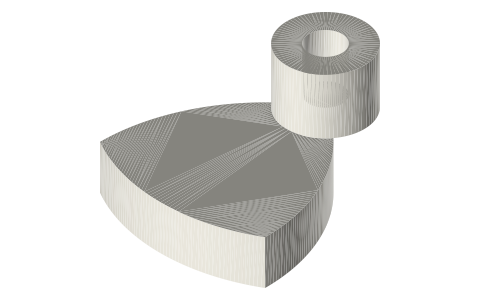

Triangular eccentric: curved (Reuleaux) triangle of width 30, pivoted at a corner
What is a triangular eccentric? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: reuleaux triangle cam, triangular eccentric, constant width cam, excéntrica triangular, Dreieckexzenter
Exact dimensions. True size, with no tolerance added.
- length
- 30.0 mm
- width
- 37.0 mm
- height
- 18.0 mm
Notes
- Curved triangle of constant width 30 mm (three arcs of radius 30 about the opposite corners), 8 thick, with a Ø14 boss and a Ø6 blind bore at one corner: turned about that corner inside a yoke 30 mm wide, it moves the yoke with dwells at both ends.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Triangular eccentric: curved (Reuleaux) triangle of width 30… size chart
| dimension | value |
|---|---|
| width | 30 mm (constant) |
| pivot | a corner, Ø14 boss, Ø6 blind bore |
| thickness | 8 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 91: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=triangular-eccentric-reuleaux-w30

Fits with
Questions
What is a triangular eccentric?
Curved triangle of constant width 30 mm (three arcs of radius 30 about the opposite corners), 8 thick, with a Ø14 boss and a Ø6 blind bore at one corner: turned about that corner inside a yoke 30 mm wide, it moves the yoke with dwells at both ends.
