Triangular eccentric: curved triangle turning in a yoke (motion with dwells)

How does a triangular eccentric give a pause at each end of the stroke? · Hardware · basis: Xem Studio design following Brown No. 91 (1868)

Also called: triangular eccentric, reuleaux triangle cam, dwell cam, constant width cam, excéntrica triangular, Dreieckexzenter

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: stroke, yoke opening.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A curved triangle of constant width turns about one of its corners inside a frame whose faces are exactly that width apart, so it always touches both. The frame moves to and fro, but stands still while a corner-centred arc rolls on a face: an intermittent reciprocation from continuous rotation.
  • Here width 30 mm: stroke 30 mm, with a dwell at each end of the stroke; drawn at 25°.
  • Brown's No. 91 (triangular eccentric giving an intermittent reciprocating motion, used in France for slide valves).

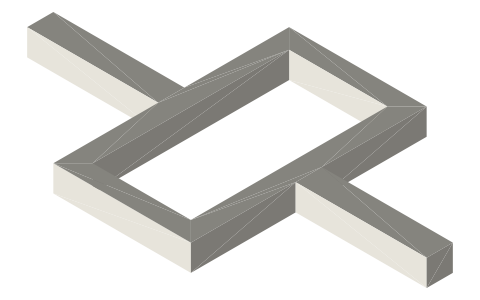

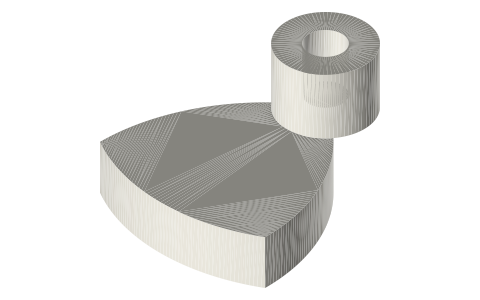

  • Parts (each has its own page): triangular-eccentric-reuleaux-w30, triangular-eccentric-yoke-w30, dowel-pins-metric.
  • Brown's movement No. 91 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Triangular eccentric: curved triangle turning in a yoke size chart

parametervalue
camReuleaux triangle, width 30
pivotone corner
stroke30 mm
yoke opening30 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 91: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
triangular-eccentric-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=triangular-eccentric-mechanism

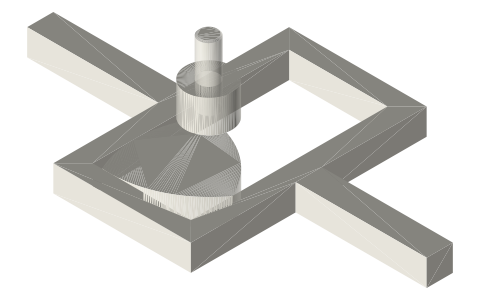

Triangular eccentric: curved triangle turning in a yoke (motion with dwells), isometric render of a generated part
Render of triangular-eccentric-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a triangular eccentric give a pause at each end of the stroke?

A curved triangle of constant width turns about one of its corners inside a frame whose faces are exactly that width apart, so it always touches both. The frame moves to and fro, but stands still while a corner-centred arc rolls on a face: an intermittent reciprocation from continuous rotation.
