Hanger post for a horizontal 2 in tube

What post holds a hanger around a horizontal tube? · Hardware · basis: Hole spacing = the 2 in spool hanger's bar holes (±39.4); bar face 39.4 from the tube axis

Also called: horizontal tube support post, spool hanger post

Long Earth Society build part. The posts under my twin generator's bounce spools. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • An upright plate with a foot: the spool hanger's bar bolts to its face with two M5 × 16 into tapped holes 78.8 apart, the hanger turned so its ring stands vertical round a horizontal tube with its axis 235.3 above the bench.
  • On the twin-piston engine one post sits under each bounce spool.

Hanger post for a horizontal 2 in tube size chart

featurevalue
axis height235.3
holes2 × M5 tapped, 78.8 apart

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bar faceflat, 39.4 from the tube axisspool hanger bardesignedall
holes2 × Ø4.2 (M5 tap drill) 78.8 apartshcs-m5x16 through the hanger bardesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem Studiotools/gen_ta_power.py: the network model and every dimension on this pagecodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
hanger-post-2in-h235.3post for a horizontal 2 in tube at 235.3: plate 30 × 8 × 290.3, foot 30 × 58 × 6, 2 × M5 tap drill Ø4.2 at ±39.4 about the tube axisSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tube-hanger-post

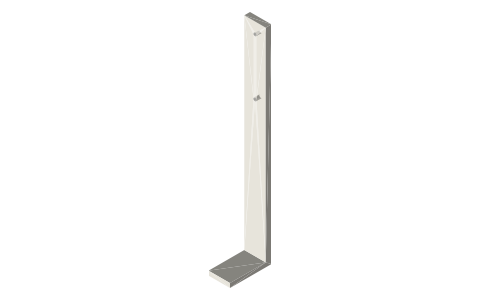

Hanger post for a horizontal 2 in tube, isometric render of a generated part
Render of hanger-post-2in-h235.3 from the free STEP; not to scale.

Fits with

Questions

Can it hold a vertical tube?

Use the 2020 stand for that; the post is for horizontal spools.
