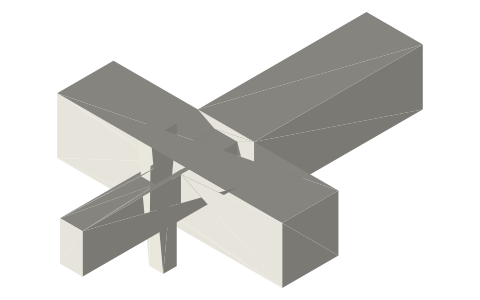

Tusk tenon joint (knock-down wedged tenon)
How does a tusk tenon work? · Hardware · basis: Xem Studio design — geometry computed in the generator from traditional proportions
Also called: tusk tenon, tusk tenon joint, knock down joint, wedged tusk tenon, keyed through tenon, espiga con cuña pasante, Keilzapfen, durchgesteckter Keilzapfen
Exact dimensions. True size, with no tolerance added.
- length
- 80.0 mm
- width
- 115.0 mm
- height
- 44.0 mm
Notes
- Woodworking joint drawn for 3D printing: the parts lock together by shape, so a print can be joined without glue or screws. Drawn at true size with the parts line to line (zero gap) in their assembled position — add your printer's fit allowance to the mating faces (your AI or slicer can do this).
- A knock-down joint: the tenon passes through and a tapered wedge through the projecting end draws it tight against the post. The slot reaches 1 mm into the mortise so the wedge bears on the post, not on the slot.
Tusk tenon joint size chart
| dimension | value |
|---|---|
| stock | 20 × 20 mm square |
| parts | post, rail, wedge |
| tenon | 8 × 14 mm, projecting 35 mm past the post |
| wedge | 5 mm thick, 1:10 taper, 44 mm long |
| assembles | tenon through, wedge driven down; knock the wedge out to take it apart |
| holds | pull-out, tightened by the wedge against the post's face |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Xem Studio | Joinery design (geometry computed in the generator from traditional proportions) | web | Xem Studio design |
Free files
★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| tusk-tenon-joint-post | Through-mortised member | STEP · STL |
| tusk-tenon-joint-rail | Rail with a long through tenon and a tapered wedge slot | STEP · STL |
| tusk-tenon-joint-wedge | Tapered wedge (1:10) | STEP · STL |
| tusk-tenon-joint-assembled | All parts in their assembled position (each part its own solid) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tusk-tenon-joint

Fits with
Questions
Why use a tusk tenon?
It takes apart: knock the wedge out and the rail slides free — good for printed furniture and stands.
