Variable-crank disc Ø80 × 6 with a 6 mm radial slot (R8 → R34)

What carries the variable crank's pin? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: variable crank, adjustable crank disc, disco de manivela variable, verstellbare Kurbelscheibe

Exact dimensions. True size, with no tolerance added.

length
80.0 mm
width
80.0 mm
height
6.0 mm

Notes

  • Ø80 × 6 disc keyed to the shaft with a 6 mm radial slot from 8 to 34 mm out: the crank pin slides along it.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Variable-crank disc Ø80 × 6 with a 6 mm radial slot size chart

dimensionvalue
discØ80 × 6, Ø8 bore
slot6 mm, R8 → R34

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 94: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
variable-crank-disc-radial-slot-80as drawn in the mechanism's own frameSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=variable-crank-disc-radial-slot-80

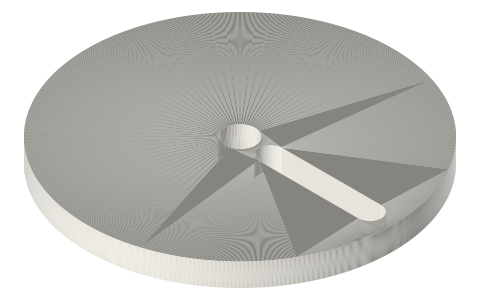

Variable-crank disc Ø80 × 6 with a 6 mm radial slot (R8 → R34), isometric render of a generated part
Render of variable-crank-disc-radial-slot-80 from the free STEP; not to scale.

Fits with

Questions

What carries the variable crank's pin?

Ø80 × 6 disc keyed to the shaft with a 6 mm radial slot from 8 to 34 mm out: the crank pin slides along it.
