Variable crank: a spiral-slotted plate moves the pin along a radial slot

How can the throw of a crank be changed while it runs? · Hardware · basis: Xem Studio design following Brown No. 94 (1868)

Also called: variable crank, adjustable stroke crank, spiral crank, manivela variable, verstellbare Kurbel

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: plates; stays the same: adjustment; step to the nearest standard size (and redraw the hole or pocket it fits): pin radius.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

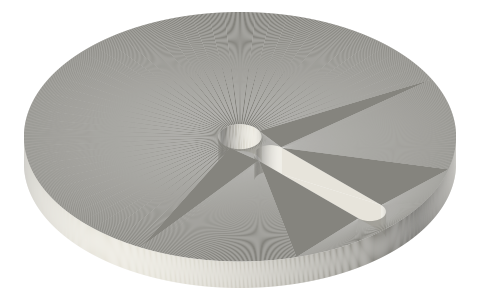

  • Two plates on the crank shaft: one with a radial slot, one with a spiral slot. The crank pin passes through both. Turning one plate against the other moves the pin in or out along the radial slot, changing the crank radius (and the stroke) without stopping.

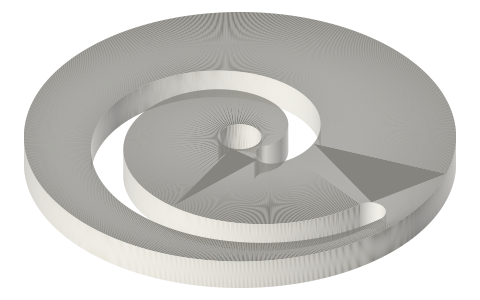

  • Here Ø80 plates, slots 6 mm, spiral rising 26 mm per turn (R8 → R34): 0.072 mm of radius per degree. Drawn with the pin at 20 mm (40 mm stroke), the spiral plate turned 166.15°.
  • Brown's No. 94 (variable crank).
  • Parts (each has its own page): variable-crank-disc-radial-slot-80, variable-crank-disc-spiral-slot-80, dowel-pins-metric, linear-shafts-h6.
  • Brown's movement No. 94 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Variable crank: a spiral-slotted plate moves the pin along a radial… size chart

parametervalue
plates2 × Ø80 × 6
pin radius8 – 34 mm (drawn 20)
adjustment26 mm per turn of the spiral

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 94: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
variable-crank-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=variable-crank-mechanism

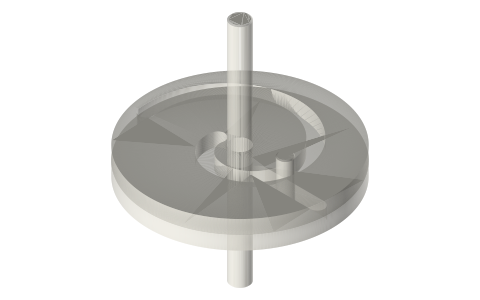

Variable crank: a spiral-slotted plate moves the pin along a radial slot, isometric render of a generated part
Render of variable-crank-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How can the throw of a crank be changed while it runs?

Two plates on the crank shaft: one with a radial slot, one with a spiral slot. The crank pin passes through both. Turning one plate against the other moves the pin in or out along the radial slot, changing the crank radius (and the stroke) without stopping.
