Wine cork #9: Ø24 × 44 mm and Ø24 × 49 mm

What size is a wine cork? · Standard part · basis: #9 wine cork, Ø24 × 44 mm (49 mm long corks for aged wines); drawn as plain cylinders

Also called: wine cork size, wine cork diameter, cork dimensions mm, #9 cork, cork stl

Long Earth Society build part. Displacer-rod glands and test-tube closures. Long Earth Society

Exact dimensions. True size, with no tolerance added.

sizes
2 in table

Notes

  • A #9 wine cork is Ø24 × 44 mm; long corks for aged wines are Ø24 × 49 mm.
  • Both files are plain Ø24 cylinders at those lengths.
  • A cork compresses to about Ø21–22 mm in a bottle neck, so it seals a 22–23 mm opening.
  • Drilled through on its axis, a cork makes a simple displacer-rod gland for a test-tube engine.

Wine cork #9: Ø24 × 44 mm and Ø24 × 49 mm size chart

corkdia (mm)length (mm)fits opening (mm)
#9 standard244422–23
#9 long244922–23

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaBungwebCC BY-SA 4.0 (text)
WikipediaCork (material)webCC BY-SA 4.0 (text)
Long Earth SocietyEngine builds (videos and write-ups)web, videoLES site

Free files

★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cork-9-wine#9 wine cork Ø24 × 44 (natural)STEP · STL
cork-9-wine-49#9 wine cork Ø24 × 49 (long)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=wine-corks

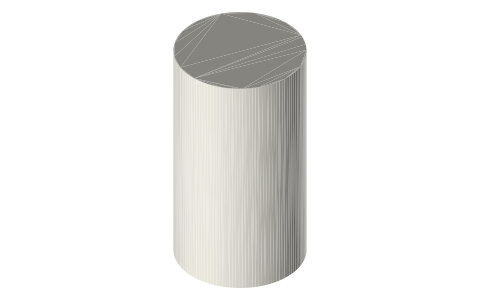

Wine cork #9: Ø24 × 44 mm and Ø24 × 49 mm, isometric render of a generated part
Render of cork-9-wine from the free STEP; not to scale.

You might also need

Questions

What size is a wine cork?

#9: 24 mm diameter, 44 mm long (49 mm for long corks).

How much does a cork compress?

From Ø24 to about Ø21–22 mm in a bottle neck.
