3.5 inch hard drive (SFF-8301)

What are the dimensions of a 3.5 inch hard drive? · Modern device · basis: SFF-8301 (SNIA SFF)

Also called: 3.5 hard drive dimensions, 3.5 inch hdd size, 3.5 drive mounting holes, medidas disco duro 3.5, dimensões HD 3.5, 3,5 Zoll Festplatte Maße, dimensions disque dur 3,5 pouces

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
147.0 mm
width
101.6 mm
height
26.1 mm

Notes

  • 147.0 × 101.6 × 26.1 mm (SFF-8301 maxima for length and height; width ±0.25). Low-profile drives are 17.8 mm thick, the tallest 42.0 mm.
  • Side holes, from the connector-end face: #6-32 UNC at 28.50 and 130.10 mm (101.60 apart), 6.35 mm above the bottom face; some drives add a third side hole (Seagate puts it at 70.11 mm), which the spec leaves optional.
  • Bottom holes: #6-32 pairs 95.25 mm apart, 3.18 mm in from each long edge, at 41.28 mm from the connector end (required) plus 44.45 and/or 76.20 mm further on (85.73 and 117.48 mm from the end). Screw penetration 2.39 min to 3.56 mm max.
  • File: a true-size solid drive with all side and bottom holes as plain cylinders at the #6-32 major diameter (3.505 mm), 3.56 mm deep; the SATA connector is not modelled. No printing allowance.

3.5 inch hard drive size chart

dimensionvalue
width101.60 mm
length (max)147.00 mm
height26.10 mm (1 in drive)
thread6-32 UNC

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
side holes#6-32 UNC at 28.50 and 130.10 from the connector end (101.60 apart), 6.35 above the bottom face#6-32 screws (SFF-8301); a third side hole is optionaldesignedall
bottom holes#6-32 pairs 95.25 apart, 3.18 from each long edge, at 41.28 from the connector end (required) plus 85.73 and/or 117.48#6-32 screws, penetration 2.39 min to 3.56 maxdesignedall
drive body147.0 × 101.6 × 26.1 (maxima; width ±0.25); 17.8 low-profile to 42.0 talldrive bay, SATA connector on the short edgeslideall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

SNIA SFFSFF-8301 Rev 1.9, 3.5" Form Factor Drive Dimensions (Fig 3-1)PDFSNIA public spec; dimensions are facts
SeagateDesktop HDD Product Manual 100768625 Rev D, Fig 2 mounting dimensionsPDFPublisher's manual; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
hdd-3-5-26-1mm3.5 in drive 147 × 101.6 × 26.1 mm: 2 × #6-32 each side at 28.50 / 130.10 mm, 6 × #6-32 bottom at 41.28 / 85.73 / 117.48 mm from the connector endSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=3-5-inch-hard-drive

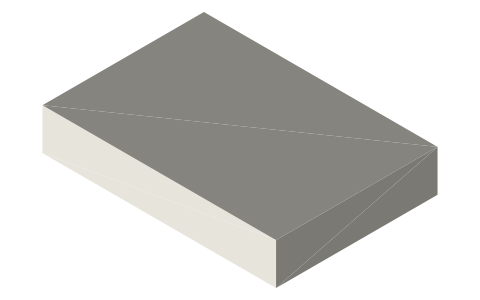

3.5 inch hard drive (SFF-8301), isometric render of a generated part
Render of hdd-3-5-26-1mm from the free STEP; not to scale.

Fits with

Questions

How big is a 3.5 inch hard drive?

101.6 × 147 × 26.1 mm.
