Bisecting gauge (centre finder with two equal links)
How does a bisecting gauge find the middle? · Hardware · basis: Xem Studio design following Brown No. 410 (1868)
Also called: bisecting gauge, centre finder, center finding gauge, centering gauge, gramil de centrar, Mittenanreißer
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: links, cheek spacing drawn, marker offset.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

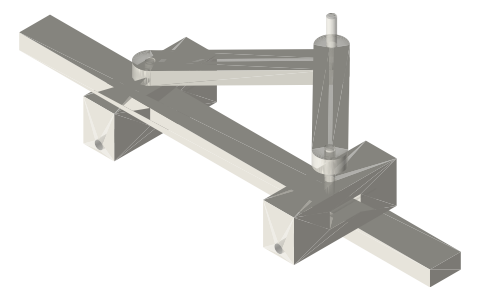

- Two cheeks on a cross-bar (one fixed, one sliding and locked by a thumb-screw) are the pivots of two equal links that meet at a pin carrying the marking point: the point is always on the perpendicular bisector of the cheeks, so set the cheeks against the two sides of a bar and drag the gauge along — it scribes the centre line whatever the width.
- Drawn with the cheeks 70 mm apart and the 50 mm catalog links: marker 35.71 mm from the bar's line. Leaving the sliding cheek free and pressed to the work bisects tapered pieces too, as Brown notes.
- Brown's No. 410 (bisecting gauge).

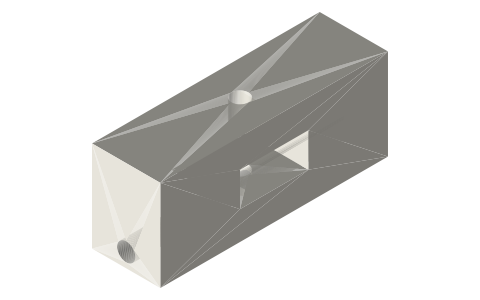

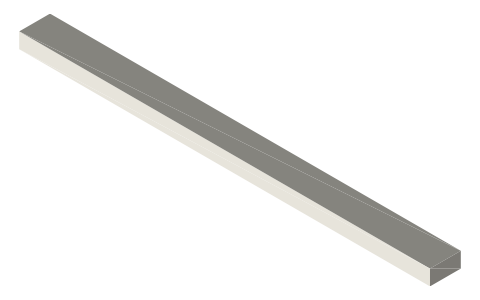

- Parts (each has its own page): gauge-cross-bar-160x12x6, gauge-cheek-12x40x16-ch12x6, four-bar-links, dowel-pins-metric.
- Brown's movement No. 410 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Bisecting gauge size chart
| parameter | value |
|---|---|
| cheeks | 2 × 12 × 40 × 16 |
| links | 2 × 50 mm (equal) |
| cheek spacing drawn | 70 mm |
| marker offset | 35.71 mm |
