Cartwright's parallel motion (twin gears and cranks)
How does Cartwright's parallel motion keep a rod straight? · Hardware · basis: Xem Studio design following Brown No. 328 (1868)
Also called: cartwright parallel motion, cartwright straight line linkage, twin crank straight line, movimiento paralelo de Cartwright, Cartwrightsche Geradführung
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: crank radius, rods; stays the same: gears; step to the nearest standard size (and redraw the hole or pocket it fits): crosshead pins.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- Two equal gears turn in opposite directions, each with a crank; equal connecting rods join the cranks to the two ends of a crosshead. By symmetry the crosshead's centre can only move on the line midway between the gears: an exact straight line.
- Here: module 1, 30 T gears at 30 mm, cranks 10 mm, rods 60 mm, crosshead pins 30 mm apart; at 35° the crosshead centre is 65.17 mm above the gear centres.
- Brown's No. 328 (Dr. Cartwright, 1787).

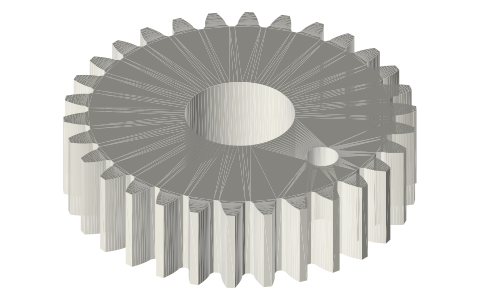

- Parts (each has its own page): crank-gear-m1-30t-pin-r10, cartwright-crosshead-30, four-bar-links, dowel-pins-metric.
- Brown's movement No. 328 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Cartwright's parallel motion size chart
| parameter | value |
|---|---|
| gears | 2 × 30 T, module 1, 30 mm centres |
| crank radius | 10 mm |
| rods | 60 mm (four-bar link) |
| crosshead pins | 30 mm apart |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 328: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| cartwright-parallel-motion-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=cartwright-parallel-motion-mechanism

Fits with




Questions
How does Cartwright's parallel motion keep a rod straight?
Two equal gears turn in opposite directions, each with a crank; equal connecting rods join the cranks to the two ends of a crosshead. By symmetry the crosshead's centre can only move on the line midway between the gears: an exact straight line.
