Crane strap brake: steel strap round a drum, tightened by a lever

How does a strap (band) brake work? · Hardware · basis: Xem Studio design following Brown No. 242 (1868)

Also called: band brake, strap brake, crane brake, drum brake band, freno de cinta de grúa, Bandbremse (Kranbremse)

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: drum; stays the same: wrap, tension ratio (μ 0.3), lever ratio.
  • Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A steel strap wraps most of the way round a drum on the hoist shaft. One end is anchored on the lever's fulcrum, the other on the lever close to it, so pressing the handle pulls the strap tight round the drum. Its grip grows along the wrap: the tension ratio between the ends is e^(μθ), 3.31 for μ = 0.3 over the 228.78° drawn, and the brake torque is (T1 − T2) × R.

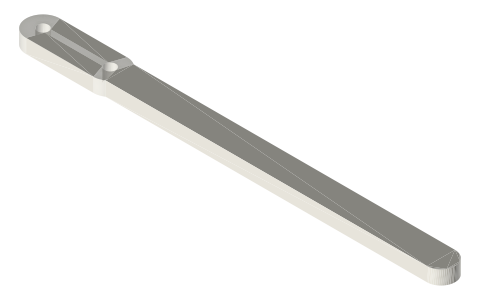

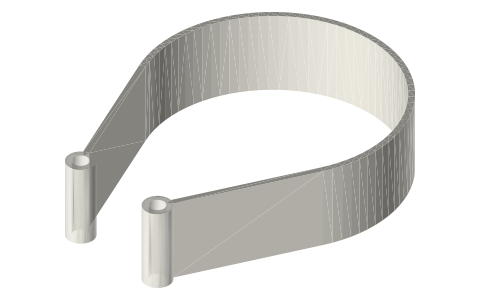

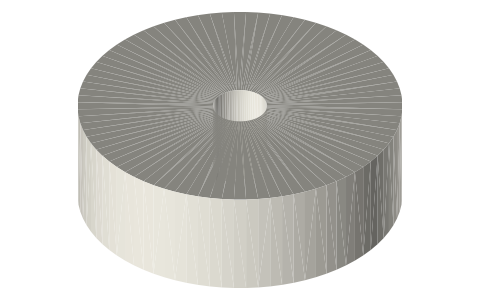

  • Drum Ø60 × 20, strap 20 × 1.5 touching the drum over 228.78° with both legs tangent, pins 24 mm apart 48 mm below the axis, lever handle 142 mm from the fulcrum. Drawn snug, lever level.
  • Brown's No. 242 (strap brake used on cranes).
  • Parts (each has its own page): brake-drum-60x20-bore10, brake-strap-20x1-5-drum60-pins24, strap-brake-lever-130-pins24, dowel-pins-metric, linear-shafts-h6.
  • Brown's movement No. 242 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Crane strap brake: steel strap round a drum, tightened by a lever size chart

parametervalue
drumØ60
wrap228.78°
tension ratio (μ 0.3)3.31
lever ratio≈ 6 : 1

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 242: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crane-strap-brake-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crane-strap-brake-mechanism

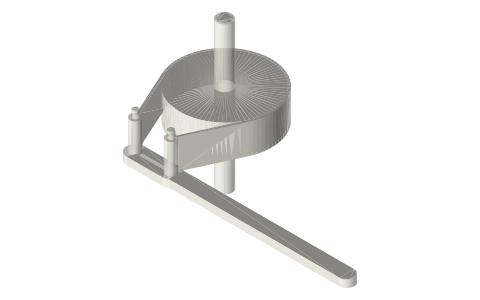

Crane strap brake: steel strap round a drum, tightened by a lever, isometric render of a generated part
Render of crane-strap-brake-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a strap (band) brake work?

A steel strap wraps most of the way round a drum on the hoist shaft. One end is anchored on the lever's fulcrum, the other on the lever close to it, so pressing the handle pulls the strap tight round the drum. Its grip grows along the wrap: the tension ratio between the ends is e^(μθ), 3.31 for μ = 0.3 over the 228.78° drawn, and the brake torque is (T1 − T2) × R.
