Gear thrown in and out of mesh by an eccentric bush (lathe back gear)

How does an eccentric bush engage a lathe's back gear? · Hardware · basis: Xem Studio design following Brown No. 56 (1868)

Also called: back gear, eccentric bush, gear engagement lever, engranaje de retroceso con casquillo excéntrico, Rädervorgelege mit Exzenterbuchse

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: eccentricity, engaged, out; stays the same: gears.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • The pinion's axle runs in a bush whose bore is off centre; the bush turns in a fixed housing. With its lever one way the axle sits at the exact centre distance and the gears mesh; half a turn of the lever moves the axle away by twice the eccentricity and the pinion comes clear.
  • Here module 1, 40 and 20 teeth (catalog gears) at 30 mm; housing bore 32.5 mm from the spindle, bush eccentricity 2.5 mm: engaged at 30 mm, thrown out to 35 mm (2.75 mm clear of the 2.25 mm tooth depth). Drawn engaged.
  • Brown's No. 56 (lever moving a lathe's back gear in and out of gear by an eccentric).

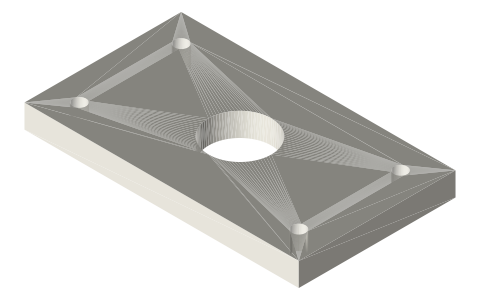

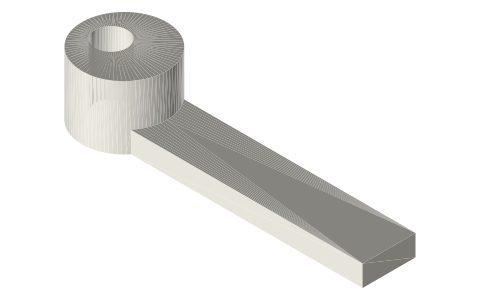

  • Parts (each has its own page): spur-gears-module-1, eccentric-bush-16-bore6-e2-5-lever, back-gear-housing-plate-70x40, dowel-pins-metric.
  • Brown's movement No. 56 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Gear thrown in and out of mesh by an eccentric bush size chart

parametervalue
gears40 / 20 T, module 1
eccentricity2.5 mm
engaged30 mm centres
out35 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 56: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
eccentric-back-gear-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=eccentric-back-gear-mechanism

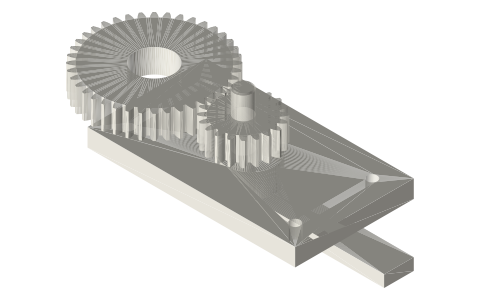

Gear thrown in and out of mesh by an eccentric bush (lathe back gear), isometric render of a generated part
Render of eccentric-back-gear-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does an eccentric bush engage a lathe's back gear?

The pinion's axle runs in a bush whose bore is off centre; the bush turns in a fixed housing. With its lever one way the axle sits at the exact centre distance and the gears mesh; half a turn of the lever moves the axle away by twice the eccentricity and the pinion comes clear.
