Flange block KFL08 envelope with a 608 pocket

What are the dimensions of a KFL08 flange bearing? · Hardware · basis: KFL08 two-bolt flange envelope: 55 × 25 flange, M5 holes 37 apart, Ø22 pocket at the 608 OD

Also called: kfl08 dimensions, kfl08 flange bearing, 2 bolt flange bearing 8mm, kfl08 stl

Long Earth Society build part. Flywheel shaft blocks and displacer guides on the LES engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A two-bolt flange 55 long × 25 wide with round ends, 9 thick, with a Ø30 boss rising to 12 overall.
  • A Ø22 pocket (608 OD) runs through the boss and flange on the centre.
  • Two Ø5.5 holes (M5 clearance) 37 mm apart.

Flange block KFL08 envelope with a 608 pocket size chart

featurevalue (mm)
flange55 × 25 × 9
bossØ30 × 12
bearing pocketØ22 through
mounting holes2 × Ø5.5 at 37

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
bearing pocketØ22608 bearingpressflange-block-*
mounting holesØ5.5M5 screw clearancedesignedflange-block-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

McMaster-CarrMounted bearings (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
McMaster-CarrSleeve bearings (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
OpenBuildsSolid V wheel kitweb, STEPOpenBuilds site verify
WikipediaPlain bearingwebCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flange-block-kfl08KFL08-envelope two-bolt flange block: Ø22 pocket for a 608 bearing, two Ø5.5 (M5 clearance) holes 37 mm apartSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flange-block-kfl08

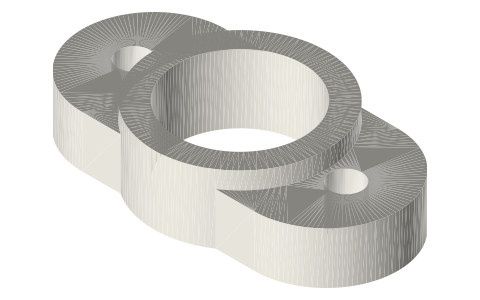

Flange block KFL08 envelope with a 608 pocket, isometric render of a generated part
Render of flange-block-kfl08 from the free STEP; not to scale.

You might also need

Questions

What is the KFL08 bolt spacing?

37 mm between the two M5 holes (Ø5.5 clearance) on a 55 × 25 flange.

What bearing goes in the KFL08 file?

A 608 (8 × 22 × 7) in the Ø22 pocket.
